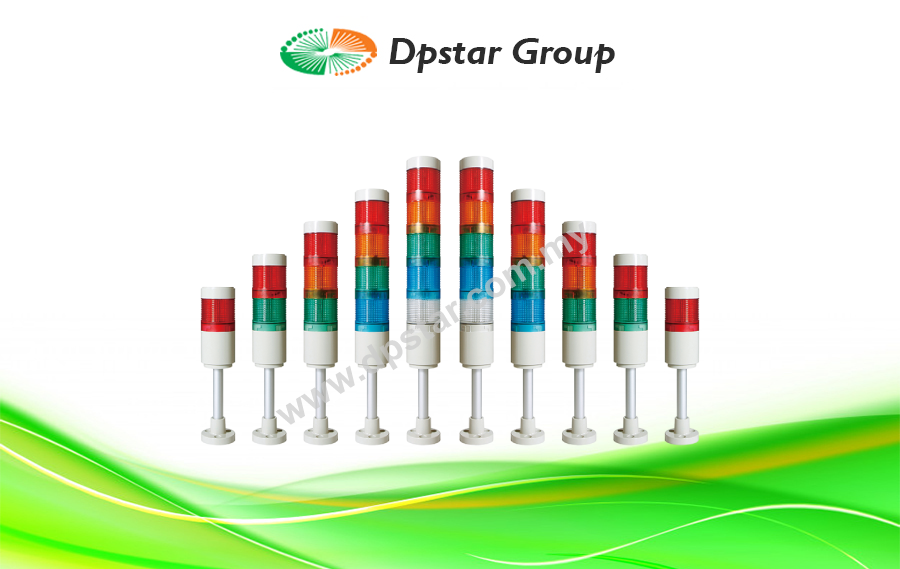

Sign tower – Hanyoung Nux STE060 Series

Features

– IP65 protected structure (Buzzer IP54)
– Long-life product due to high brightness of LED light
– Simple structure from 1 stack to 5 stacks
– Various mounting supporters
– Easy to change the colors due to module type

Enquiry
Categories: , , ,
Love0

Features

– IP65 protected structure (Buzzer IP54)
– Long-life product due to high brightness of LED light
– Simple structure from 1 stack to 5 stacks
– Various mounting supporters
– Easy to change the colors due to module type

Specification

Base unit suffix code

Model code Description
STE60- STE060 Sign tower base unit
Classification B Base unit
Function A Lighting only
F Lighting, flickering, Buzzer (External signal)
Power supply voltage D51 24 V d.c.
A11 100-240 V a.c. (50-60 ㎐)

LED unit suffix code

Model code Description
STE60- STE060 Sign tower base unit
Classification L LED unit
Function R Red unit
Y Yellow unit
G Green unit
B Apua unit
W White unit

Base unit specification

Model STE060-BAD51 STE060-BFD511 STE060-BAA11 STE060-BFA11 Dimension
Power supply voltage 24V d.c. STE060 Sign tower base unit
Function Lighting only Lighting, Flickering, Buzzer(External signal) Lighting only Lighting, Flickering, Buzzer (External signal)
Flickering time – 60 times / minute – 60 times / minute
Buzzer sound types – A single melody / beeping – A single melody / beeping
Size of buzzer sound – 85 ㏈(1m distance) – 85 ㏈
Consumption of electrical power – 1.2W – 1.2W
Ambient Temperature / Humidity -5℃ ~ 50℃ / 35~85 % RH (with no condensation)
Weight 76g 96g 160g 178g

LED unit specification

Model STE060-LR STE060-LY STE060-LG STE060-LB STE060-LW
Dimension
Power supply voltage 2.4 V d.c.
Consumption of electrical power 1.2W
Light source LED
Emission angle 360 ˚
Ambient Temperature / Humidity -5 ℃ ~ 50℃ / 35~85 % RH (with no condensation)
Weight(g) 43g

Installation method (supporter)

Model L M S E
Dimension



Ordering Code

Model code Description
STE60- Ø60 LED Light sign tower
Function A Lighting only
F Lighting, Flickering, Buzzer (External signal)
Power supply
voltage		 D51 24 V d.c.
A11 100-240 V a.c. 50-60 ㎐
Stacking modules 1 1 stack (Red)
2 2 stacks (Red, Green)
3 3 stacks (Red, Yellow, Green)
4 4 stacks (Red, yellow, Green, Blue)
5 5 stacks (Red, Yellow, Green, Blue, White)
Supporter selection L L type supporter (Standard type)
E Elbow type supporter (EPM-18) (additional charge)
M Plastic supporter (MP-60)
S Plastic supporter (ST-011)

※The color was arranged from top to bottom in following order, Red, Yellow, Green, Blue, and White. There are two types of functions which are lightening only/Lightening, Flickering & Buzzer.

Download

Hanyoung Nux STE060 Series Sign Tower–DpstarGroup
