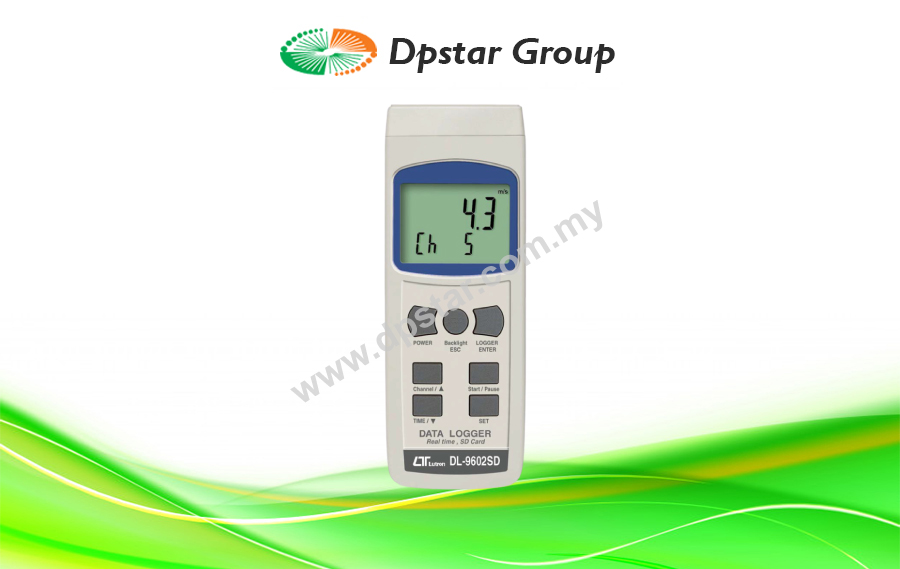

SD Card Data Logger – Lutron DL-9602SD

Features

  • Real time SD memory card Data logger, it can cooperate with most LUTRON instruments if it is built-in the computer interface.
  • Innovation and easy operation, computer is not need to setup extra software, just take away the SD card from the DL-9602SD and plug it into the computer, then the measured values with the time information (year/month/date/hour/minute/second) can be downloaded to the Excel directly. User can make the further data or graphic analysis in the Excel by themselves.
  • Built-in Clock and Calendar, real time data recorder, sampling time can be set from 2 seconds to 8 hours 59 minutes 59 seconds.
  • Manual data logger is available (set the sampling time to 0), during executing the manual data logger 　function, it can set the different place location No. (place 1 to place 99).
  • SD card (optional) capacity : 1 GB to 16 GB.
  • Can set max. 9 channel data inputs with default.
  • DC 1.5V battery (UM-3, AA) x 6 or DC 9V adapter in.
  • LCD with green light backlight, easy reading.
  • RS232/USB computer interface.
Enquiry
Categories: , , ,
Love0

SD Card Data Logger
Model : DL-9602SD

  • Real time SD memory card Data logger, it can cooperate with most LUTRON instruments if it is built-in the computer interface.
  • Innovation and easy operation, computer is not need to setup extra software, just take away the SD card from the DL-9602SD and plug it into the computer, then the measured values with the time information (year/month/date/hour/minute/second) can be downloaded to the Excel directly. User can make the further data or graphic analysis in the Excel by themselves.
  • Built-in Clock and Calendar, real time data recorder, sampling time can be set from 2 seconds to 8 hours 59 minutes 59 seconds.
  • Manual data logger is available (set the sampling time to 0), during executing the manual data logger 　function, it can set the different place location No. (place 1 to place 99).
  • SD card (optional) capacity : 1 GB to 16 GB.
  • Can set max. 9 channel data inputs with default.
  • DC 1.5V battery (UM-3, AA) x 6 or DC 9V adapter in.
  • LCD with green light backlight, easy reading.
  • RS232/USB computer interface.

Specification

Application • Real time SD memory card Datalogger can cooperate with all LUTRON instruments if it build in the computer interface.

• Innovation and easy operation,  computer no need to setup extra oftware, after execute datalogger, just plug in the SD card into the computer, it can down load the all the measured value and unit along with the time information ( year/month/date/ hour/minute/second ) to the Exce directly, user can make the further data or graphic analysis by themselves.
Circui Custom one-chip of microp rocessor LSI circuit.
Display • LCD size : 52 mm x 38 mm
• LCD with Backlight ( ON/OFF ).
Input Signal Direct RS232 signal input
Isolate RS232 signal input.
Advanced setting • SD memory card Format
• SD memory card Forma Set clock time ( Year/Month/Date, Hour/Minute/ Second
• Set sampling time ( Hour/Minute Second )
• Auto power OFF management
• Set LCD backlight ON/OFF
• Set beeper sound ON/OFF
Power off Auto shut off saves battery life or manual off by push button
Sampling Time Setting range •  Auto 2 seconds to 8 hours 59 min.
@ Sampling time can set to 1 second but memory data may loss
•  Manual Push the data logger button nce will save data one time.
@ Set the sampling time to  second.
Data error no. 0.1% of total saved data max.
Data Output RS 232/USB PC computer interface
• The output data structure are same as he input data.
• Connect the optional RS232 cable
PCB-02 will get the RS232 plug.
• Connect the optional USB cable
USB-01 will get the USB plug.
Operating Temp. and Humidity •  0 to 50°C .
• Less than 85% R.H.
Power Supply • Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
• DC 9V adapter input. ( AC/DC power adapter is optional ).
Power Current • Normal operation ( w/o SD card save data and LCD Backlight is OFF) :
Approx. DC 7 mA.• When SD card save the data and LCD Backlight is OFF) :
Approx. DC 28 mA• If LCD backlight on, the power consumption will increase
approx. 17 mA.
Weight 468 g/1.03 LB
Dimension 178 x 68 x 44 mm (7.0 x 2.7x 1.7 inch)
Standard Accessories Included • Instruction manual………………………1 PC
• Double earphone cable, UPCB-03………………………….1 PC
Optional Accessory • Hard carrying case, CA-06
• SD Card ( 4 GB )

Download

Lutron DL-9602SD – SD Card Data Logger-DpstarGroup
