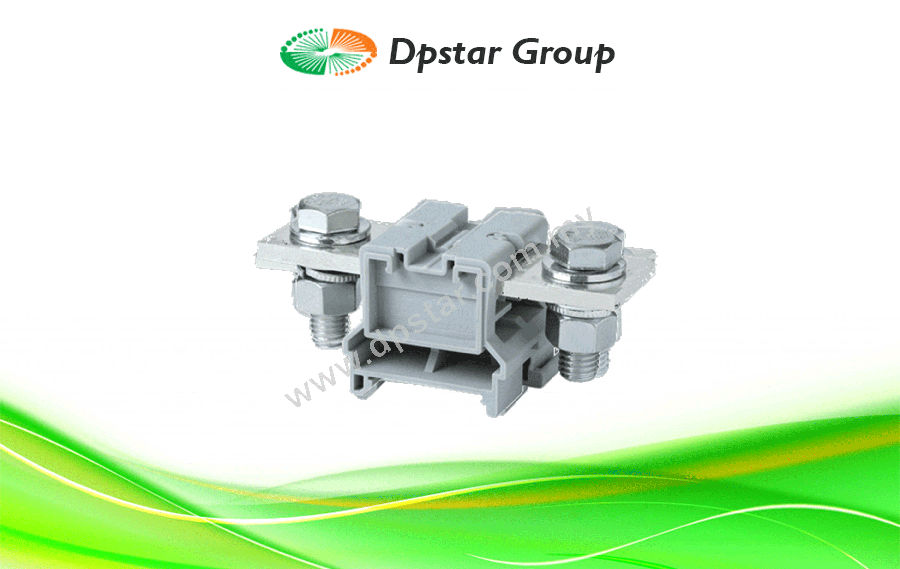

Screw Clamp Terminal Blocks – Stud / Bolt – Connectwell CBB185

Feature

185 sq.mm Stud Type Power Terminal Blocks

CBB series Terminal Blocks are preferred for application using wires of large cross section. The Wire is crimped to a ring / fork lug and is screwed on to the flat current bar of the Terminal Block.



Enquiry
Category:
Love0
185 sq.mm Stud Type Power Terminal Blocks

CBB series Terminal Blocks are preferred for application using wires of large cross section. The Wire is crimped to a ring / fork lug and is screwed on to the flat current bar of the Terminal Block.

Specification



TECHNICAL DATA

Rated Voltage 1000 V
Rated Current 353 A
Tightening Torque 14 Nm
Housing Material Polyamide
Product Function Feed Through
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Operated by Nut Driver
Rated Surge Voltage 8 KV
Pollution Degree 3

CONNECTION DATA

Conductor Cross Section Stranded min. 16 mm²
Conductor Cross Section Stranded max. 185 mm²
Conductor Cross Section AWG/Kcmil min 8 AWG
Conductor Cross Section AWG/Kcmil max 350 kcmil
Conductor Cross Section Stranded with Ferrule/Lug min 16 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 185 mm²

DIMENSIONS

Height with DIN 35 x 15 mm rail 54.5 mm
Height with DIN 35 x 7.5 mm rail 47.3 mm
Length 110 mm
Width (Thickness) 48 mm

Ordering Code

CAT. NO. DESCRIPTION STD. PACK
CBB185 185 sq.mm Feed through Bolt/Nut Type Terminal Block in Grey colour 10



Download

Connectwell CBB185 StudBolt Clamps Screw Clamp Terminal Blocks-DpstarGroup
