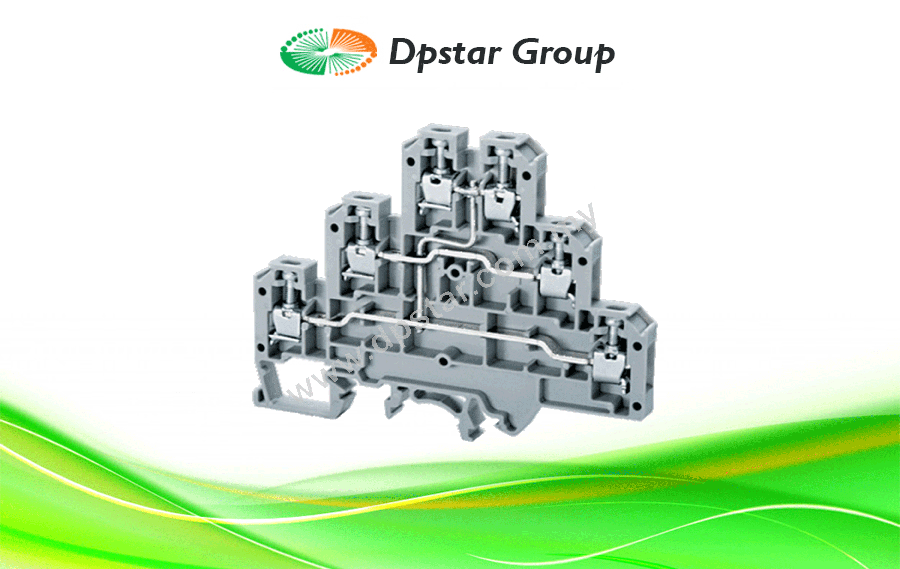

Screw Clamp Terminal Blocks – Multiple Level – Connectwell CTL2.5U(I.S)

Feature

2.5 sq.mm Three Level internally shorted Terminal Blocks

CTL2.5U(I.S) Terminal Block is an internally shorted terminal block which can be used for distribution application ideal choice for control systems where sensor and actuator applications are involved. The simplified three level connections with internally shorted helps in tremendously increase wiring density in the circuit. In application where switching indication is required CTL2.5U(I.S) is the one with built in electronic component. Marking tags in blue and red colour besides the conventional white colour are suggested for effective identification.



Enquiry
Category:
Love0
2.5 sq.mm Three Level internally shorted Terminal Blocks

CTL2.5U(I.S) Terminal Block is an internally shorted terminal block which can be used for distribution application ideal choice for control systems where sensor and actuator applications are involved. The simplified three level connections with internally shorted helps in tremendously increase wiring density in the circuit. In application where switching indication is required CTL2.5U(I.S) is the one with built in electronic component. Marking tags in blue and red colour besides the conventional white colour are suggested for effective identification.

Specification



TECHNICAL DATA

Rated Voltage 500 V
Rated Current 24 A
Tightening Torque 0.4 Nm
Housing Material Polyamide
Product Function Triple Level
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M2.5
Operated by Screwdriver
Rated Surge Voltage 4 KV
Pollution Degree 3

CONNECTION DATA

Conductor Cross Section Stranded min. 0.2 mm²
Conductor Cross Section Stranded max. 2.5 mm²
Conductor Cross Section AWG/Kcmil min 22 AWG
Conductor Cross Section AWG/Kcmil max 12 AWG
Conductor Cross Section Stranded with Ferrule/Lug min 0.2 mm²
Conductor Cross Section Stranded with Ferrule/Lug max 2.5 mm²
2 Conductors with same Cross Section Stranded min 0.2 mm²
2 Conductor with same Cross Section Stranded max 1.5 mm²
Conductor Cross Section Solid min 0.2 mm²
Conductor Cross Section Solid max 4 mm²
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min 0.2 mm²
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max 1.5 mm²
Stripping Length 9 mm
Internal Cylindrical Guage A3

DIMENSIONS

Height with DIN 32 rail 73.8 mm
Height with DIN 35 x 15 mm rail 75.6 mm
Height with DIN 35 x 7.5 mm rail 68 mm
Length 84 mm
Width (Thickness) 6 mm

Ordering Code

CAT. NO. DESCRIPTION STD. PACK
CTL2.5U(I.S) 2.5 sq.mm Three level internally shorted Terminal Block with LED indication in Grey colour 50
