4 sq.mm Multiple Connection Terminal Blocks with 3 connection points.
These blocks are used to connect multiple wires in single Terminal Block, thereby eliminating reliability problems encountered when connecting multiple wires in a single clamp.

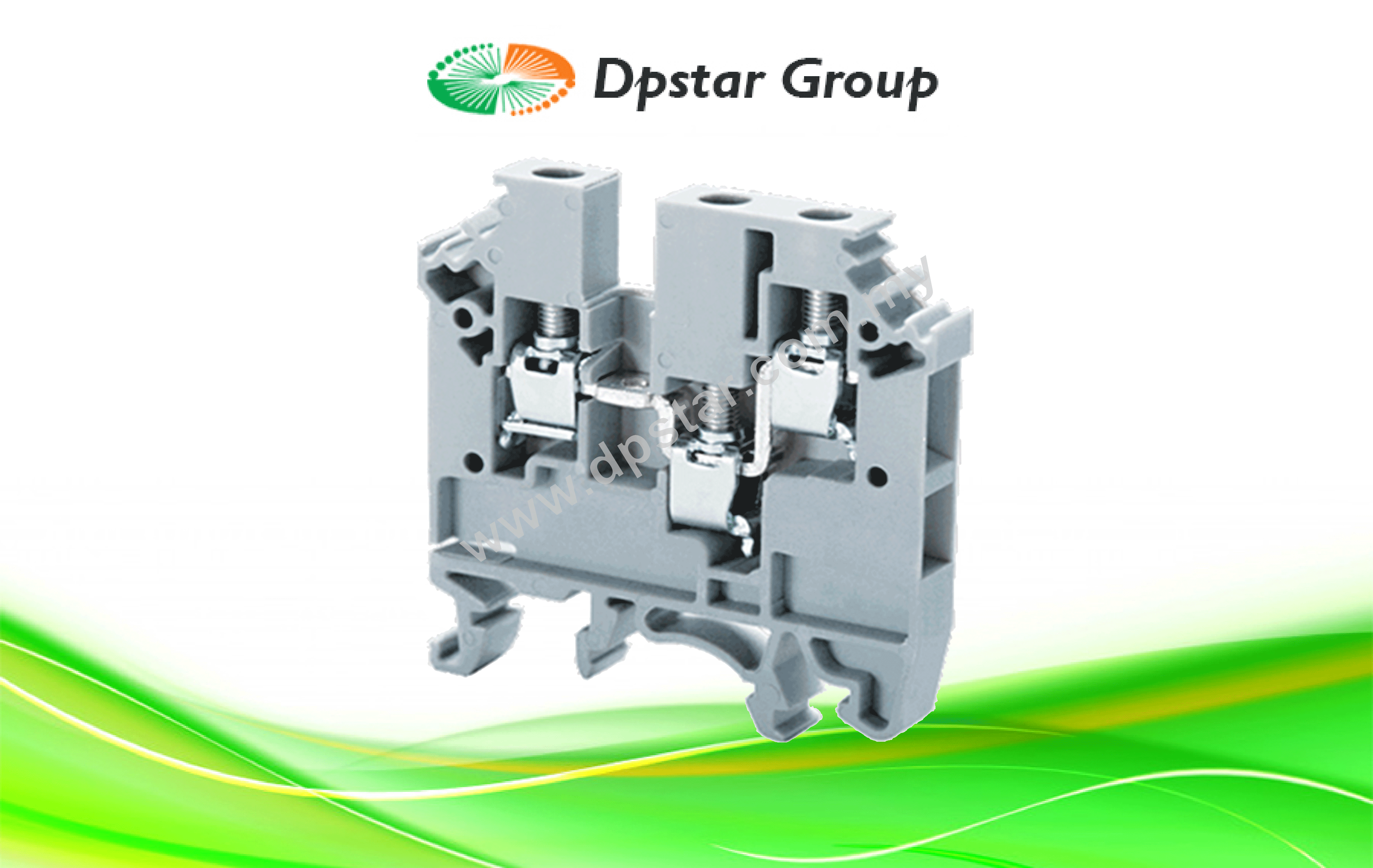

Screw Clamp Terminal Blocks -Multiple Connection – Connectwell CMC1-2
Feature
4 sq.mm Multiple Connection Terminal Blocks with 3 connection points.
These blocks are used to connect multiple wires in single Terminal Block, thereby eliminating reliability problems encountered when connecting multiple wires in a single clamp.
Specification
TECHNICAL DATA
| Rated Voltage | 630 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Multiple Connection |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
CONNECTION DATA
| Conductor Cross Section Stranded min. | 0.2 mm² |
| Conductor Cross Section Stranded max. | 4 mm² |
| Conductor Cross Section AWG/Kcmil min | 22 AWG |
| Conductor Cross Section AWG/Kcmil max | 10 AWG |
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² |
| Conductor Cross Section Stranded with Ferrule/Lug max | 4 mm² |
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² |
| 2 Conductor with same Cross Section Stranded max | 2.5 mm² |
| Conductor Cross Section Solid min | 0.2 mm² |
| Conductor Cross Section Solid max | 6 mm² |
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² |
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 2.5 mm² |
| Stripping Length | 9 mm |
| Internal Cylindrical Guage | A4 |
DIMENSIONS
| Height with DIN 32 rail | 58.7 mm |
| Height with DIN 35 x 15 mm rail | 60.5 mm |
| Height with DIN 35 x 7.5 mm rail | 53.4 mm |
| Length | 65 mm |
| Width (Thickness) | 6 mm |
Ordering Code
| CAT. NO. | DESCRIPTION | STD. PACK |
| CMC2-2 | 4 sq.mm Multiple Connection Terminal Block in Grey colour | 50 |
| CMC2-2BU | 4 sq.mm Multiple Connection Terminal Block in Blue colour | 50 |
