35 sq.mm Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. A specially designed flexible foot enable easy mounting and dismounting from the Din rail with the help of screw driver. These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links / sleeves & screws.

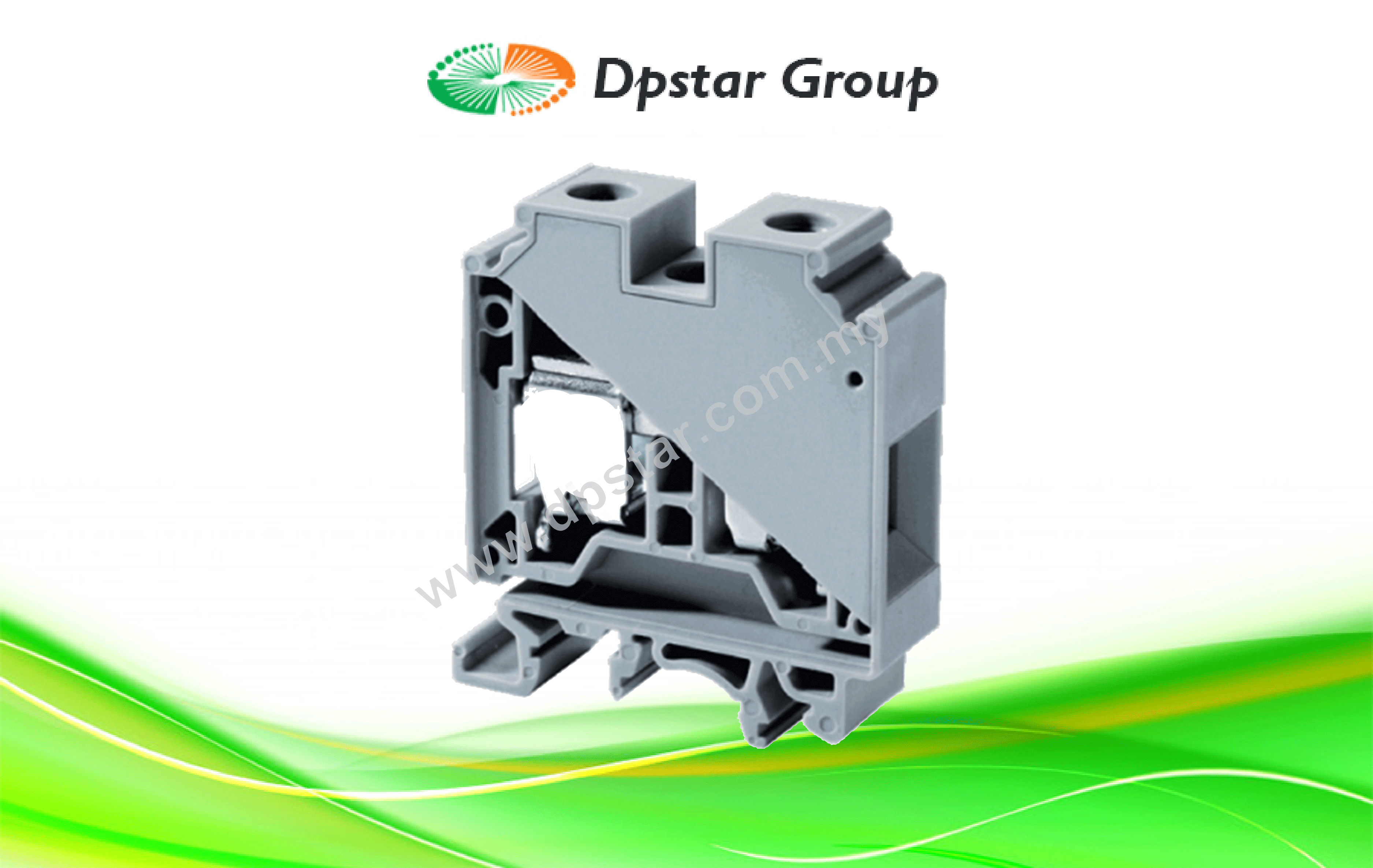

Screw Clamp Terminal Blocks – Feed Through – Connectwell CTS35UNA
Feature
35 sq.mm Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. A specially designed flexible foot enable easy mounting and dismounting from the Din rail with the help of screw driver. These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links / sleeves & screws.
Specification
TECHNICAL DATA
Rated Voltage | 1000 V |
Rated Current | 125 A |
Tightening Torque | 2.5 Nm |
Housing Material | Polyamide |
Product Function | Feed Through |
Wire Entry Orientation | Side Entry |
Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
Screw Size | M6 |
Operated by | Allen Key |
Rated Surge Voltage | 8 KV |
Pollution Degree | 3 |
CONNECTION DATA
Conductor Cross Section Stranded min. | 4 mm² |
Conductor Cross Section Stranded max. | 35 mm² |
Conductor Cross Section AWG/Kcmil min | 12 AWG |
Conductor Cross Section AWG/Kcmil max | 2 AWG |
Conductor Cross Section Stranded with Ferrule/Lug min | 4 mm² |
Conductor Cross Section Stranded with Ferrule/Lug max | 35 mm² |
2 Conductors with same Cross Section Stranded min | 4 mm² |
2 Conductor with same Cross Section Stranded max | 16 mm² |
2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 4 mm² |
2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 16 mm² |
Stripping Length | 15 mm |
Internal Cylindrical Guage | A9 |
DIMENSIONS
Height with DIN 32 rail | 64.3 mm |
Height with DIN 35 x 15 mm rail | 66.7 mm |
Height with DIN 35 x 7.5 mm rail | 59.2 mm |
Length | 50.5 mm |
Width (Thickness) | 16 mm |
Ordering Code
CAT. NO. | DESCRIPTION | STD. PACK |
CTS35UNA | 35 sq.mm Feed Through Terminal Block in Grey colour | 50 |
CTS35UNAR | 35 sq.mm Feed Through Terminal Block in Red colour | 50 |
CTS35UNAY | 35 sq.mm Feed Through Terminal Block in Yellow colour | 50 |
CTS35UNABU | 35 sq.mm Feed Through Terminal Block in Blue colour | 50 |
CTS35UNABK | 35 sq.mm Feed Through Terminal Block in Black colour | 50 |
CTS35UNAGN | 35 sq.mm Feed Through Terminal Block in Green colour | 50 |
