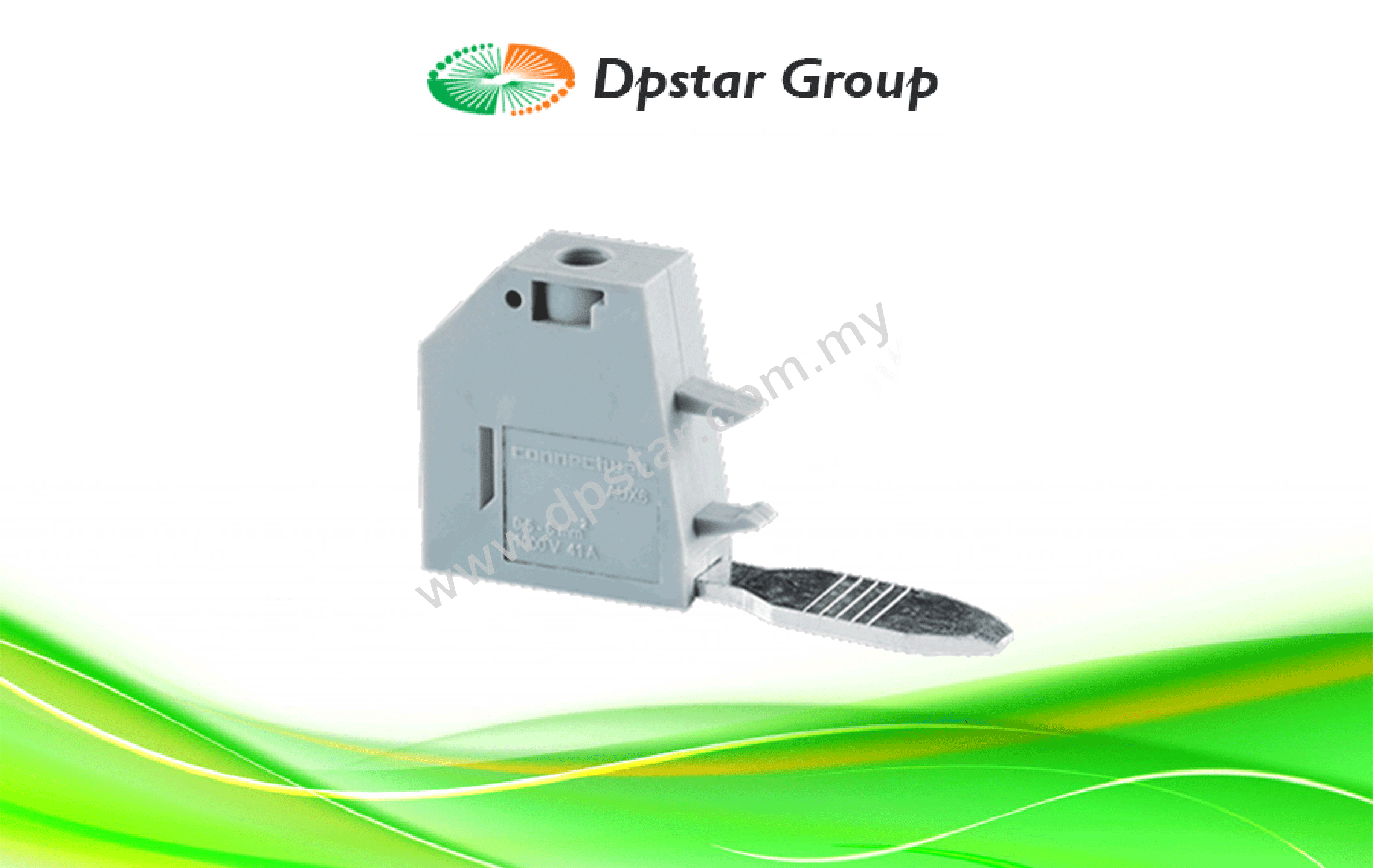

In certain power circuits, there is a need to take an extra connection for an Auxillary circuit like an indicating light or contractor. The AUX6 terminal easily plugs into the terminal and provides this extra connection point.
In certain power circuits, there is a need to take an extra connection for an Auxillary circuit like an indicating light or contractor. The AUX6 terminal easily plugs into the terminal and provides this extra connection point.
TECHNICAL DATA
| Rated Voltage | 1000 V |
| Rated Current | 41 A |
| Tightening Torque | 0.8 Nm |
| Housing Material | Polyamide |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Screw Size | M3.5 |
| Operated by | Screwdriver |
CONNECTION DATA
| Conductor Cross Section Stranded min. | 0.5 mm² |
| Conductor Cross Section Stranded max. | 6 mm² |
| Conductor Cross Section AWG/Kcmil min | 22 AWG |
| Conductor Cross Section AWG/Kcmil max | 8 AWG |
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.5 mm² |
| Conductor Cross Section Stranded with Ferrule/Lug max | 6 mm² |
| 2 Conductors with same Cross Section Stranded min | 0.5 mm² |
| 2 Conductor with same Cross Section Stranded max | 4 mm² |
| Conductor Cross Section Solid min | 0.5 mm² |
| Conductor Cross Section Solid max | 10 mm² |
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.5 mm² |
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 4 mm² |
DIMENSIONS
| Height | 29.4 mm |
| Length | 53.6 mm |
| Width (Thickness) | 8 mm |
| CAT. NO. | DESCRIPTION | STD. PACK |
| AUX6 | Auxiliary Terminal Block available in Grey colour | 10 |
| AUX6R | Auxiliary Terminal Block available in Red colour | 10 |
| AUX6Y | Auxiliary Terminal Block available in Yellow colour | 10 |
| AUX6BU | Auxiliary Terminal Block available in Blue colour | 10 |
