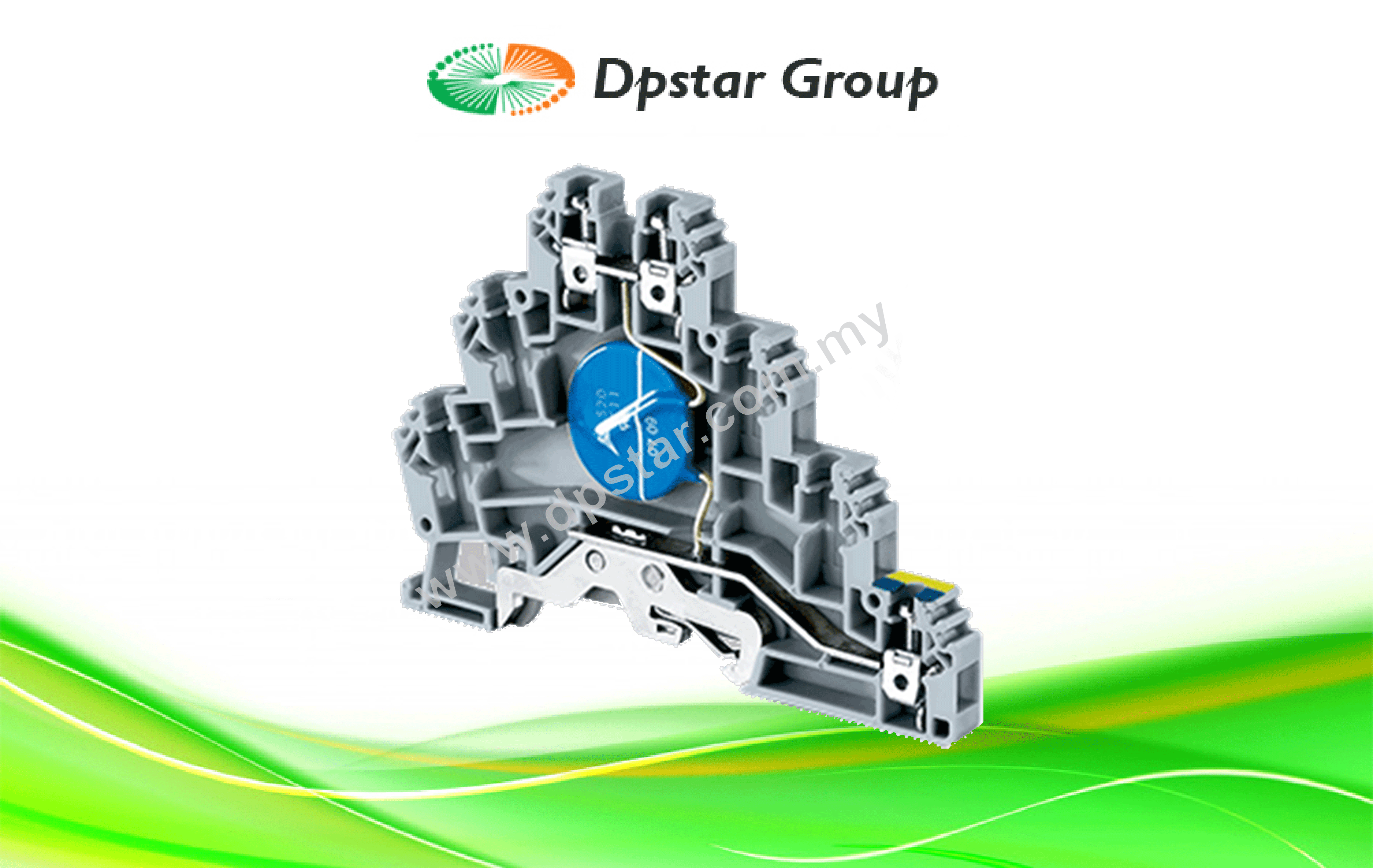

2.5 sq.mm Triple Level Surge Suppression Terminal Blocks with additional grounding point.
These Terminal Blocks are designed to protect a single line against a longitudinal (line/earth) surge, thereby protecting distribution and input.
Screw Clamp Terminal Blocks – Electronic Component – Connectwell CTLG2.5EMOV
Feature
2.5 sq.mm Triple Level Surge Suppression Terminal Blocks with additional grounding point.
These Terminal Blocks are designed to protect a single line against a longitudinal (line/earth) surge, thereby protecting distribution and input.
Specification
TECHNICAL DATA
| Rated Voltage | 275 V |
| Rated Current | 6.5 KA |
| Tightening Torque | 0.4 Nm |
| Housing Material | Polyamide |
| Product Function | With Surge Supressing Components |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Screw Size | M2.5 |
| Operated by | Screwdriver |
CONNECTION DATA
| Conductor Cross Section Stranded min. | 0.2 mm² |
| Conductor Cross Section Stranded max. | 2.5 mm² |
| Conductor Cross Section AWG/Kcmil min | 22 AWG |
| Conductor Cross Section AWG/Kcmil max | 14 AWG |
| Conductor Cross Section Stranded with Ferrule/Lug min | 0.2 mm² |
| Conductor Cross Section Stranded with Ferrule/Lug max | 2.5 mm² |
| 2 Conductors with same Cross Section Stranded min | 0.2 mm² |
| 2 Conductor with same Cross Section Stranded max | 1.5 mm² |
| Conductor Cross Section Solid min | 0.2 mm² |
| Conductor Cross Section Solid max | 4 mm² |
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 0.2 mm² |
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 1.5 mm² |
| Stripping Length | 9 mm |
| Internal Cylindrical Guage | A3 |
DIMENSIONS
| Height with DIN 35 x 15 mm rail | 74 mm |
| Height with DIN 35 x 7.5 mm rail | 66 mm |
| Length | 87.5 mm |
| Width (Thickness) | 6 mm |
Ordering Code
| CAT. NO. | DESCRIPTION | STD. PACK |
| CTLG2.5EMOV-30V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 30V | 50 |
| CTLG2.5EMOV-60V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 60V | 50 |
| CTLG2.5EMOV-75V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 75V | 50 |
| CTLG2.5EMOV-130V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 130V | 50 |
| CTLG2.5EMOV-275V | 2.5 sq.mm Surge Suppression Terminal Block in Grey colour suitable for 275V | 50 |
