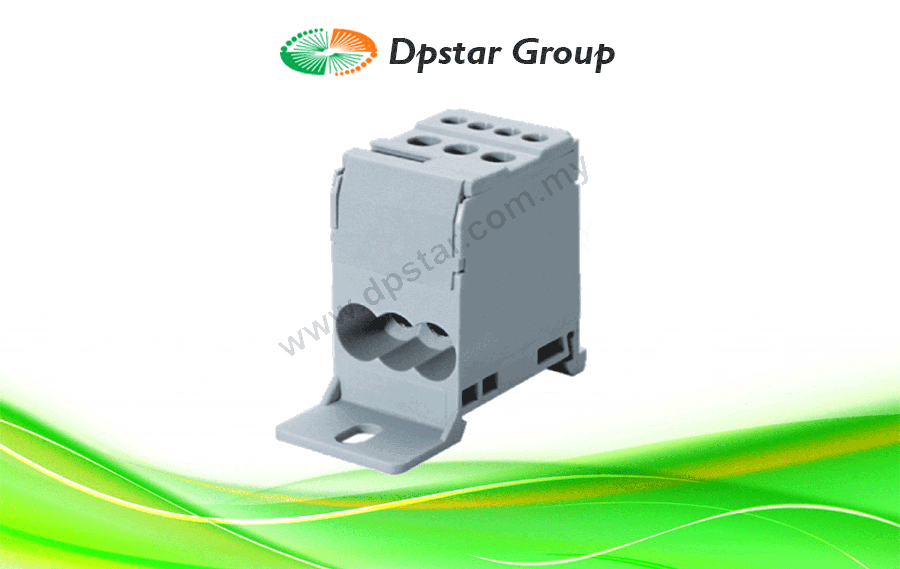

16 sq.mm Compact Distribution Blocks.
DB16 , these are the distribution blocks are used for single phase distribution system. These blocks can either be mounted on Din rail or can be panel mounted.
Screw Clamp Terminal Blocks – Distribution – Connectwell DB16
Feature
16 sq.mm Compact Distribution Blocks.
DB16 , these are the distribution blocks are used for single phase distribution system. These blocks can either be mounted on Din rail or can be panel mounted.
Specification
TECHNICAL DATA
| Rated Voltage | 1000 V |
| Rated Current | 76 A |
| Tightening Torque – Input Side | 1.2 Nm |
| Tightening Torque – Output Side | 0.8 Nm |
| Housing Material | Polyamide |
| Product Function | Modular Distribution Blocks |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M5 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 6 KV |
| Pollution Degree | 3 |
CONNECTION DATA
| Conductor Cross Section Stranded min.- Input Side | 6 mm² |
| Conductor Cross Section Stranded max. – Input Side | 16 mm² |
| Conductor Cross Section Stranded min.- Output Side | 2.5 mm² |
| Conductor Cross Section Stranded max.- Output Side | 6 mm² |
| Conductor Cross Section Stranded min AWG/KCMIL.- Input Side | 8 AWG |
| Conductor Cross Section Stranded max AWG/KCMIL.- Input Side | 4 AWG |
| Stripping Length- Input Side | 15 mm |
| Stripping Length-Output Side | 9 mm |
| Internal Cylindrical Guage | A5 |
DIMENSIONS
| Height with DIN 35 x 15 mm rail | 57.8 mm |
| Height with DIN 35 x 7.5 mm rail | 50.8 mm |
| Length | 66 mm |
| Width (Thickness) | 27 mm |
Ordering Code
| CAT. NO. | DESCRIPTION | STD. PACK |
| DB16 | 16 sq.mm Comact Distribution Terminal Block in Grey colour. | 10 |
| DB16BU | 16 sq.mm Comact Distribution Terminal Block in Blue colour. | 10 |
| DB16R | 16 sq.mm Comact Distribution Terminal Block in red colour. | 10 |
| DB16Y | 16 sq.mm Comact Distribution Terminal Block in yellow colour. | 10 |
