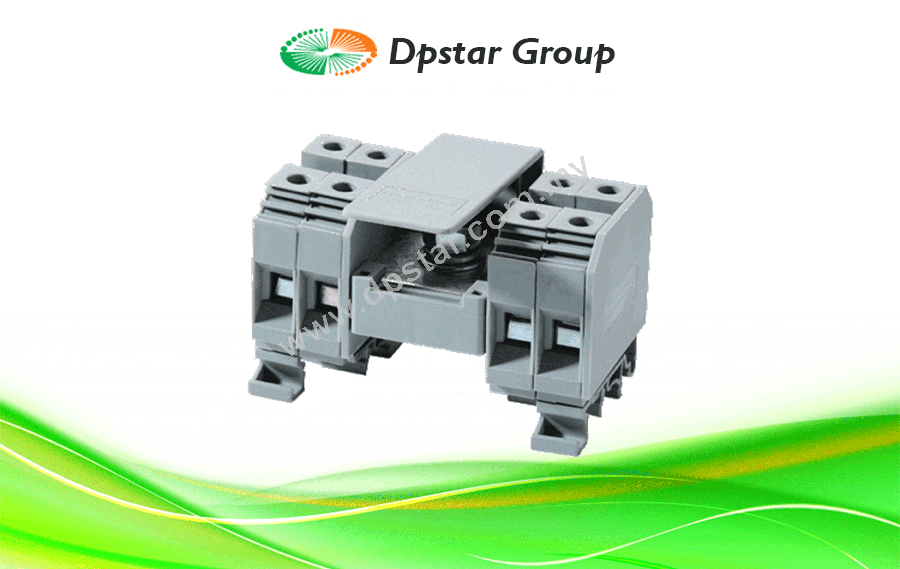

The CDB range of distribution blocks is an ideal choice for a simplified distribution system. A bolt in the center of the block provides a connection point for the incoming cable. All the terminals are internally connected and provide multiple connection points for the outgoing wires. A Protective shield effectively shrouds the incoming connection.
The CDB range of distribution blocks is an ideal choice for a simplified distribution system. A bolt in the center of the block provides a connection point for the incoming cable. All the terminals are internally connected and provide multiple connection points for the outgoing wires. A Protective shield effectively shrouds the incoming connection.
TECHNICAL DATA
| Rated Voltage | 800 V |
| Rated Current – Input Side | 150 A |
| Rated Current – Output Side | 75 A |
| Tightening Torque – Input Side | 6 Nm |
| Tightening Torque – Output Side | 2 Nm |
| Housing Material | Polyamide |
| Product Function | Modular Distribution Blocks with Bolt Type Input Connection |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M5 |
| Stud Size | M8 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
CONNECTION DATA
| Conductor Cross Section Stranded min. | 6 mm² |
| Conductor Cross Section Stranded max. | 25 mm² |
| Conductor Cross Section Stranded min.- Input Side | 10 mm² |
| Conductor Cross Section Stranded max. – Input Side | 50 mm² |
| Conductor Cross Section Stranded min.- Output Side | 6 mm² |
| Conductor Cross Section Stranded max.- Output Side | 25 mm² |
| Conductor Cross Section AWG/Kcmil min | 12 AWG |
| Conductor Cross Section AWG/Kcmil max | 2/0 AWG |
| Conductor Cross Section Stranded with Ferrule/Lug min | 6 mm² |
| Conductor Cross Section Stranded with Ferrule/Lug max | 25 mm² |
| 2 Conductors with same Cross Section Stranded min | 6 mm² |
| 2 Conductor with same Cross Section Stranded max | 16 mm² |
| 2 Conductors with same Cross Section Stranded with TWIN Ferrule/Lug min | 6 mm² |
| 2 Conductor with same Cross Section Stranded with TWIN Ferrule/Lug max | 16 mm² |
| Stripping Length | 14 mm |
| Internal Cylindrical Guage | A8 |
DIMENSIONS
| Height with DIN 32 rail | 62.3 mm |
| Height with DIN 35 x 15 mm rail | 64.7 mm |
| Height with DIN 35 x 7.5 mm rail | 57.2 mm |
| Length | 49 mm |
| Width (Thickness) | mm |
| CAT. NO. | DESCRIPTION | STD. PACK |
| CDB25/2 | Grey colour Modular Distribution Terminal Block with 8 outputs of 25 sq.mm | 10 |
| CDB25/3 | Grey colour Modular Distribution Terminal Block with 12 outputs of 25 sq.mm | 10 |
| CDB25/4 | Grey colour Modular Distribution Terminal Block with 16 outputs of 25 sq.mm | 5 |
