This Slim-shaped Plug-in R.T.D temperature converter, CP3702 functions to convert input from RTD into standard process signal to generate isolated dual output.

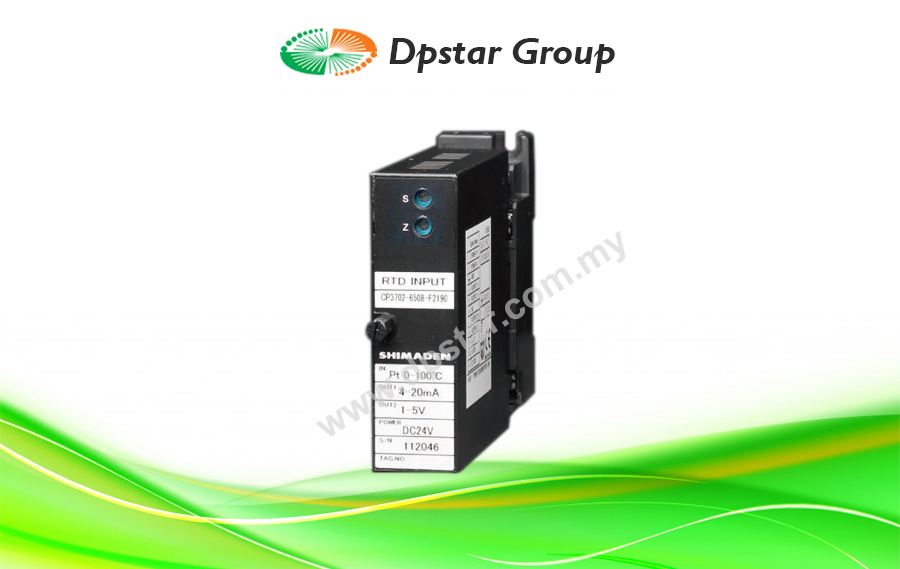

RTD Temperature Converter – Shimaden CP3702 Series
Features
- Slim-shaped plug-in converter with isolated single/dual- output
- DIN Rail mounting or Lateral mounting
- Power supply 100 – 240V AC or 24V DC
- Moisture-proof coating is applied as standard.
- CE marking applied (applicable standard: EMC: EN61326-1)
Specification
| Input | R.T.D. Pt100/JPt100 | |||||||||||||||
| Conversion accuracy | Within ±0.15% at 25±5°C | |||||||||||||||
| Effection against ambient temperature | ±0.2% max. against span of 10°C temperature difference | |||||||||||||||
| Measuring range | See measuring range code | |||||||||||||||
| Amperage | 1mA | |||||||||||||||
| Input lead wire resistance | 200Ωmax./wire | |||||||||||||||
| Maximum output load | DC voltage: | 1V span min. | Load current:2mA max. | |||||||||||||
| 10mV span min. | Load resistance: 10kΩmin. | |||||||||||||||
| 100mV span min. | Load resistance: 100kΩmin. | |||||||||||||||
| DC current: | 4-20mA Single output: | Load current: 750Ωmax. | ||||||||||||||
| 4-20mA Dual output: | Output 1: 550Ωmax. | |||||||||||||||
| Output 2: 350Ωmax. | ||||||||||||||||
| Input resistance | 1MΩmin. (1MΩ when power failure/constant input) | |||||||||||||||
| External resistance tolerance range | 1kΩ max. | |||||||||||||||
| Response speed | 170m sec. max. (0-90%) at 100% step input | |||||||||||||||
| Burnout | up-scale | |||||||||||||||
| Conversion output variable range | zero: Approx. ±5%FS of span (adjustable by front trimmer) | |||||||||||||||
| span: Approx. ±5%FS of span (adjustable by front trimmer) | ||||||||||||||||
| Power supply | 100 – 240V AC ±10% or 24V DC±10% | |||||||||||||||
| Power consumption | 2W max. at 24V DC | |||||||||||||||
| Operating ambient temperature | -5 – 55°C | |||||||||||||||
| Operating ambient humidity | 5 – 90%RH (No dew condensation) | |||||||||||||||
| Stock temperature | -10 – 60°C | |||||||||||||||
| Isolation resistance | 100M Ω min. at 500V DC, between input, out 1, out 2, power supply and ground terminals | |||||||||||||||
| Dielectric strength | 1 minutes at 2000V AC, between input, out 1, out 2, power supply and ground terminals | |||||||||||||||
| 1 minutes at 500V AC, between out 1 and out 2 | ||||||||||||||||
| Materials: | Housing: ABS resin (UL94V-0) | |||||||||||||||
| Terminal block: PBT resin (UL94V-0) | ||||||||||||||||
| Terminal block cover: PC resin (UL94V-2) | ||||||||||||||||
| Din-rail stopper: PP resin (UL94-HB) | ||||||||||||||||
| External dimensions | 88 (H) x 29 (W) x D125 (H)mm | |||||||||||||||
| Weight | Main body: 120g max. | |||||||||||||||
| Terminal block: 80g max. | ||||||||||||||||
Ordering Information
| ITEMS | CODE | SPECIFICATIONS | |||||||||||||
| Series | CP3702- | R.T.D. Temperature Converter | |||||||||||||
| Output 1 | 1 | 0 – 10mV DC | |||||||||||||
| 2 | 0 – 100mV DC | ||||||||||||||
| 3 | -10 – 10mV DC | ||||||||||||||
| 4 | -100 – 100mV DC | ||||||||||||||
| 5 | 1 – 5V DC | ||||||||||||||
| 6 | 4 – 20mA DC | ||||||||||||||
| 7 | 0 – 5V DC | ||||||||||||||
| 8 | 0 – 10V DC | ||||||||||||||
| 9 | Others (Please consult before ordering.) | ||||||||||||||
| Output 2 | 0 | None | |||||||||||||
| 1 | 0 – 10mV DC | ||||||||||||||
| 2 | 0 – 100mV DC | ||||||||||||||
| 3 | -10 – 10mV DC | ||||||||||||||
| 4 | -100 – 100mV DC | ||||||||||||||
| 5 | 1 – 5V DC | ||||||||||||||
| 6 | 4 – 20mA DC * Note: Available only when output 1 (4 – 20mA DC) is selected. | ||||||||||||||
| 7 | 0 – 5V DC | ||||||||||||||
| 8 | 0 – 10V DC | ||||||||||||||
| 9 | Others (Please consult before ordering.) | ||||||||||||||
| Power Supply | 90- | 100 – 240V AC ±10% 50/60Hz | |||||||||||||
| 08- | 24V DC ±10% | ||||||||||||||
| Input | F | Pt100 | |||||||||||||
| J | JPt100 | ||||||||||||||
| Measuring Range | °°° | See measuring range codes. | |||||||||||||
| Remarks | 0 | Without | |||||||||||||
| 9 | With (Please consult before ordering.) | ||||||||||||||
