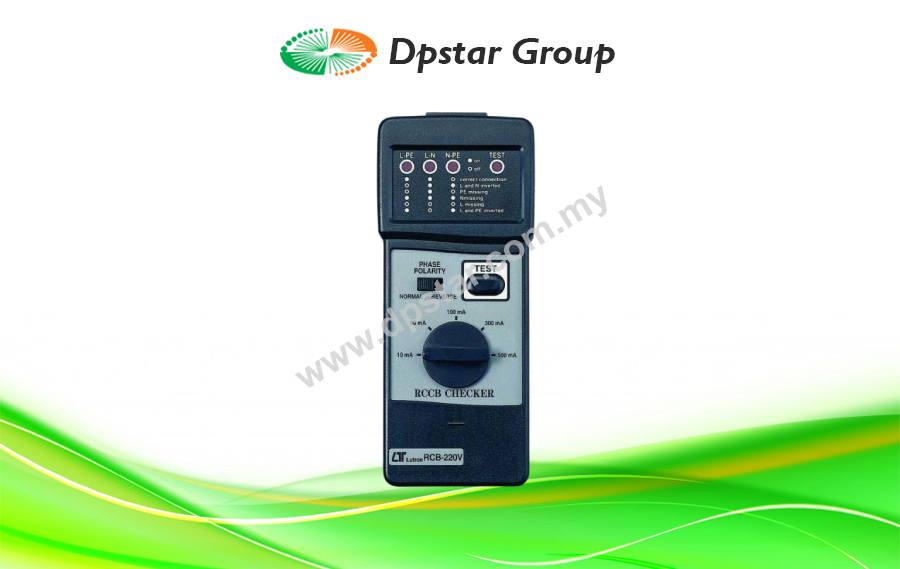

RCCB Tester (Residual Current Breaker Tester) – Lutron RCB-220V

Features

Checking the power socket pin assignment.
Residual current circuit breaker test.
Rated tripping current setting 10 mA, 30 mA, 100 mA, 300 mA and 500 mA.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, RCCB Tester (Residual Current Breaker Tester)

RCCB Checker
Model : RCB-110V, 100~120 ACV, 50/60 Hz.

Checking the power socket pin assignment.
Residual current circuit breaker test.
Rated tripping current setting 10 mA, 30 mA, 100 mA, 300 mA and 500 mA.

Specification

Display	• 3 LEDs for pin assignment of sockets L-N, L-PE, N-PE. • 1 LED for tripping current pulse. • (L-Line, N-Neture, PE-Power Earth)
Applications	• Checking the shock-proof plug pin assignment • Residual Current Circuit Breaker Test
Rated Tripping Current Settings	10 mA, 30 mA, 100 mA, 300 mA and 500 mA.
Test Current Duration	Approx. 140 ms (200 ms, -30%) according to DIN VDE.
Operating Factor	Approx. 10% for 500 mA range, wait approx. 10 sec between each step.
Tested Mains Voltage	• Model : RCB-220V 200V to 240V, 50/60 Hz • Model : RCB-220V 100V to 120V, 50/60 Hz
Power Supply	Directly from mains.
Operating Temp.	0 to 50 ℃ (32 to 122 ℉).
Operating Humidity	Less than 80% RH.
Weight	200 g/0.44 LB.
Dimension	180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch).
Accessories Included	• Instruction manual…………………………………………1 PC. • Power cable with Plug…………………………………… 1 PC.
