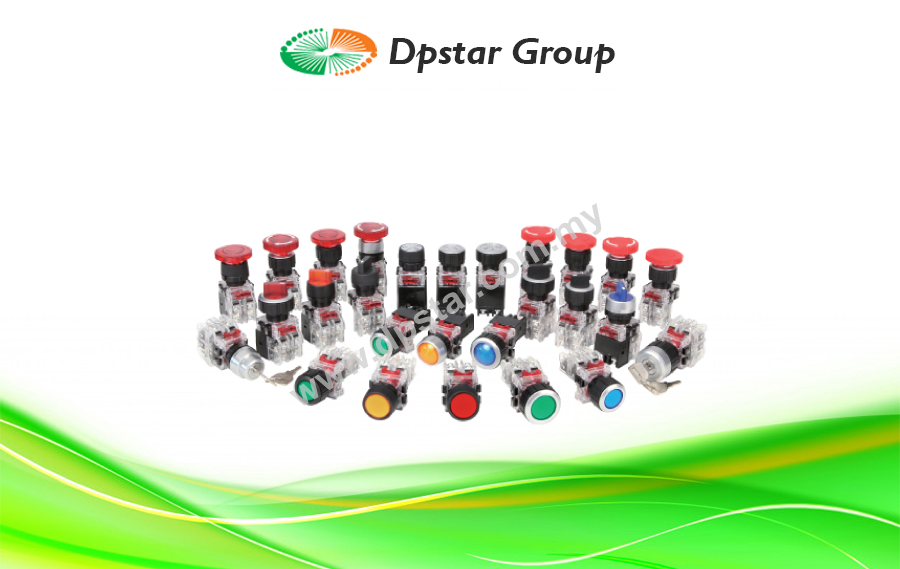

Push Button Switch - Hanyoung Nux MR Series

Push Button Switch – Hanyoung Nux MR Series

Enquiry

Specification

Contact composition		1a1b
Contact action		Snap-action
Installing panel thickness		7.0 mm (when excluded the additional accessories)
Material	Contact material	AgSnO₂
Material	Contact body material	Polycarbonate(P.C)
Mechanical characteristic	Fixed torque	Installing nut : 1.96 N•m max, Installing nut : 0.78 N•m max
	Operating power	6.47 N (operation part + 1a1b contact)
	Operating distance	5 mm ±0.2
	Reflection time	max 3 ms
	Durability of actuator	Button: min 500 thousand times, Selector switch: min 200 thousand times
Electrical characteristic	Dielectric strength	2,000 V a.c. 1 min
	Contact resistance	max 50 MΩ (Initial setting)
	Insulation resistance	min 100 MΩ 500 V d.c.
	Rated current	6 A 250 V a.c.
	Min load current	5 mA 24 V d.c., 10 mA 110 V d.c.
	Min load current	200 thousand times
Light source	Power supply voltage	100 – 240 V a.c. (LED condenser voltage dropping type)
		380 V a.c. (LED condenser voltage dropping type)
		12 – 24 V d.c./a.c. (LED resistance voltage dropping type)
Buzzer volume		Approx. 90 dB
Environment condition	Ambient temperature	-20 ~ 55 ℃
	Ambient humidity	35 ~ 85 % RH
	Storage temperature	-40 ~ 85 ℃
	Shock resistance	300 m/²s pulse cycle 11 ms
	Vibration resistance	100 m/²s 10 – 55 Hz, amplitude 0.75 mm (within 1 ms )
