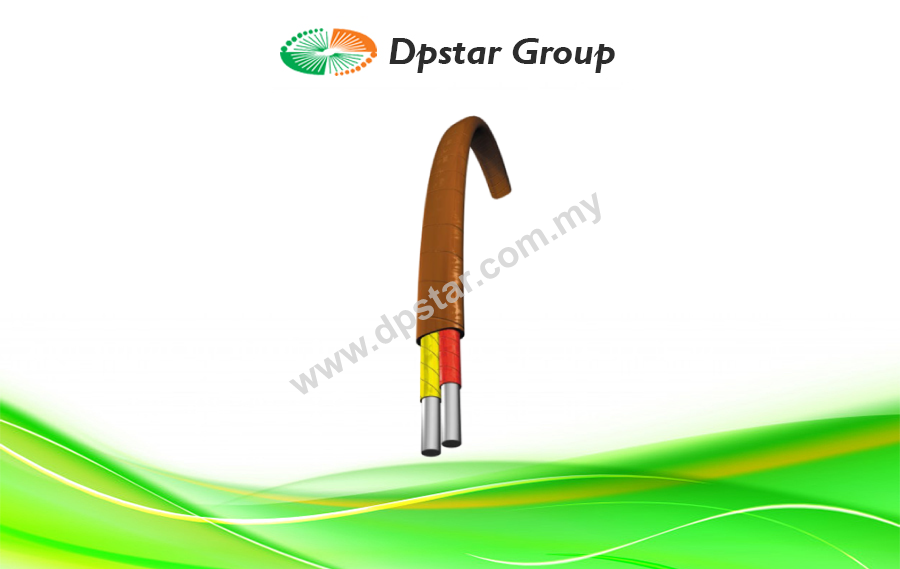

PTFE Tape Insulated Cable – TEW&C TF/TF

Features

  • Continuous use up to 500F (260C)
  • Low Coefficient of Friction/ Abrasion Resistant
  • Excellent Solvent and Moisture Resistance
  • Thermally Stable – Will Not Melt
  • Flame Retardant
  • Passes IEEE 383 Flame Test
  • Passes VW-1 Flame Test
  • Excellent Electrical Properties
  • FDA Approved for use around food
Enquiry
Category:
Love0

TFE Tape is a fluoropolymer suitable for use up to 500 F (260C), and is flame retardant and non-propagating in fire conditions. TFE is a heat fused tape spiral wrapped over individual conductors forming a seamless layer of insulation. Conductors are laid parallel and jacketing is applied thought similar process creating a duplex construction. The product is moisture/chemical resistant and provides a low friction when pulled. This construction also provides all the benefits of FEP with a higher temperature rating.

Applications

  • Aerospace
  • Power Generation
  • Laboratories
  • Petrochemical Plants
  • Cryogenic Applications
  • FDA Approved Application
  • Food Processing Plants
  • Packaging
  • Composites

Available Options

  • Metal Overbraid
  • Galvanized Half-Oval Armor
  • Twisted/Shielded Pair
  • Special Color Codes
  • Calibration Test Reports

Specification

Conductors Solid or stranded thermocouple wire per ASTM E230 & ANSI MC96.1
Insulation Two layers of fused fluoropolymer PTFE tape
Construction Parallel conductors
Jacket Two layers of fused fluoropolymer PTFE tape
Operating Temperature -328F (-200C) t0 +500F (+260C) continuous
Limits of Error Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code Conforms to ASTM E230 and ANSI MC96.1 (International Color Codes Available)

Download

TEW&C TF/TF – PTFE Tape Insulated Cable-DpstarGroup
