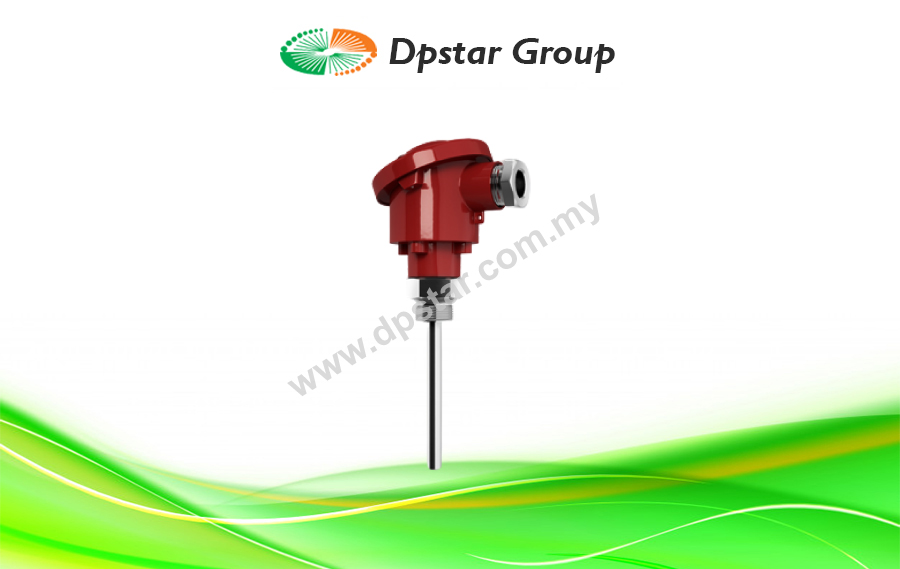

PT100 Temperature Sensor – PR Electronics 7400

Application

• Temperature measurement in industrial systems, eg. in the food, chemical and pharmaceutical industries, cold storage plants, district heating, power plants, refineries and ships.
• Temperature measurement in gas and floating media.

Technical characteristics

• The 7400 comes with a fixed measurement insert.
• The sensor element is a thin film platinum resistor – Pt100 – trimmed at a laboratory to comply with the resistance values of the standard IEC 60751, class A. The advantage of a thin film element is an ultra short reaction time. The Pt100 element is electrically isolated from the protecting tube and terminal head.
• The protecting tube is Ø 9 x 1 mm stainless, acid-proof steel W no. 1.4571 / AISI 316TI, filled with aluminum oxide powder. A 1/2” RG thread nipple is welded on the protecting tube with a packing sheet of Ø 30 and span 30.
• The terminal head is a standard DIN 43729 form B housing produced in light-alloy metal, protected against corrosion through strong industrial lacquering.
• The sensor is available with or without cooling extension to keep the terminal head clear of isolated surfaces.

Electrical connection

• Each sensor is delivered with a three-wire connection which allows cable compensation to the sensor element.

Option

• Pt100 sensor type 7400 is available with a built-in ceramic socket (item no. 7423) or with a built-in 2-wire programmable transmitter for both standard and I.S. installations.
