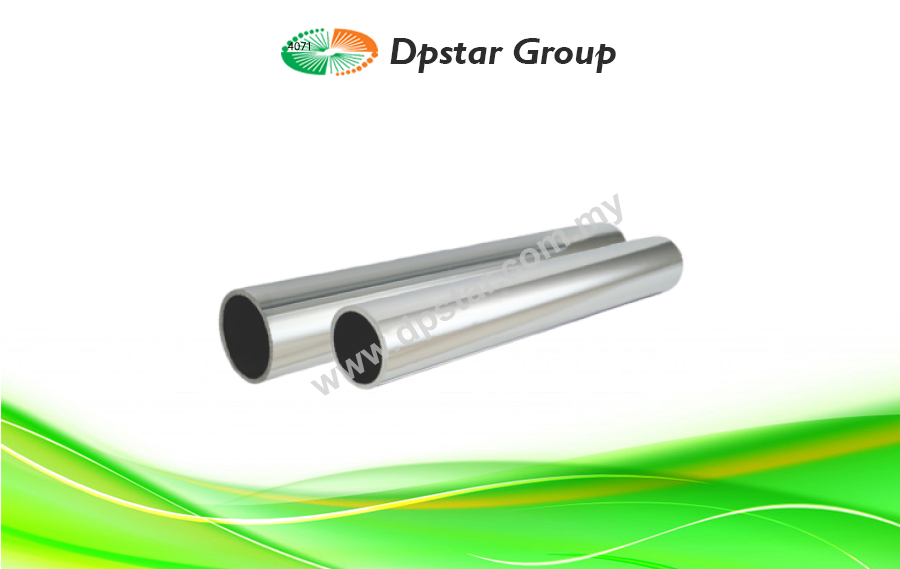

Protection Tube – Maltec-T Metallic

Metal tube offer good mechanical protection for base metal thermocouple up to 1150°C in oxidizing atmospheres. A wide selection of styles and materials such as 304 and 316. All metals are porous above 870°C, so it may be necessary to provide a ceramic primary tube to protect the thermocouple from detrimental vapors. Protective sleeving such as teflon are available for the corrosive applications.

Material protection Tube

• S.S 304  : Max Temp.800°C
• S.S 316L : Max Temp.800°C
• Inconel 600 : Max Temp.1250°C
• Titanium : Max Temp.1000°C
• Teflon Coated : Max Temp.250°C
