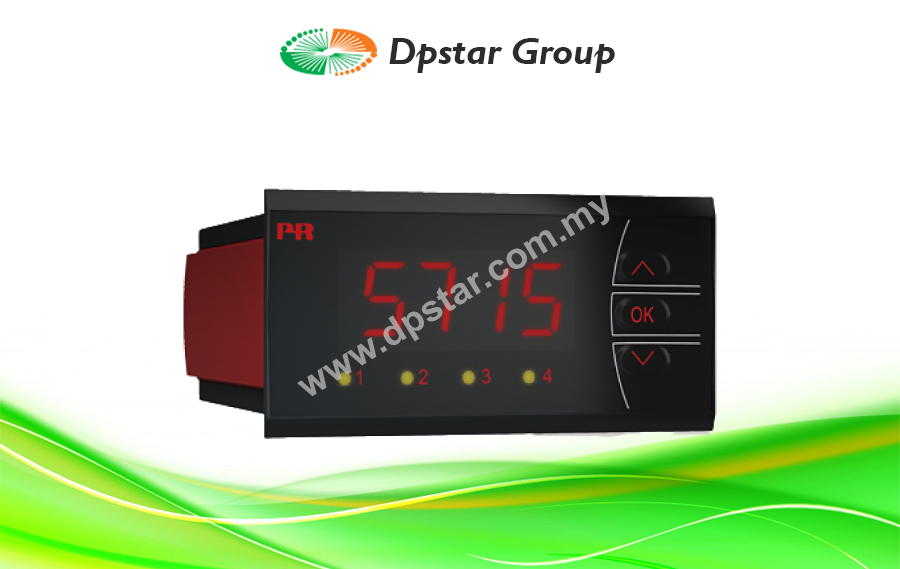

ENVIRONMENTAL CONDITIONS |
Operating temperature |
-20°C to +60°C |
Calibration temperature |
20…28°C |
Relative humidity |
< 95% RH (non-cond.) |
Protection degree (mounted in panel) |
IP65 / Type 4X |
MECHANICAL SPECIFICATIONS |
Dimensions (HxWxD) |
48 x 96 x 120 mm |
Cut out dimensions |
44.5 x 91.5 mm |
Weight approx. |
260 g |
Wire size, pin 41-46 (max.) |
0.05…1.31 mm2 AWG 30…16 stranded wire |
Wire size, others, max. |
0.05…3.31 mm2 / AWG 30…12 stranded wire |
Vibration |
IEC 60068-2-6 |
2…13.2 Hz |
±1 mm |
13.2…100 Hz |
±0.7 g |
COMMON SPECIFICATIONS |
Supply |
|
Supply voltage, universal |
21.6…253 VAC, 50…60 Hz or 19.2…300 VDC |
Max. required power |
3.3 W (5715B) 3.8 W (5715D) |
Internal power dissipation |
3.0 W (5715B) 3.5 W (5715D) |
Isolation voltage |
|
Isolation voltage, test / working |
2.3 kVAC / 250 VAC |
Response time |
|
Temperature input (0…90%, 100…10%) |
≤ 1 s |
mA / V input (0…90%, 100…10%) |
≤ 400 ms |
Auxiliary supplies |
|
2-wire supply (pin 46…45) |
25…15 VDC / 0…20 mA |
Signal / noise ratio |
Min. 60 dB (0…100 kHz) |
Accuracy |
Better than 0.1% of sel. range |
Programming |
Loop Link |
EMC immunity influence |
< ±0.5% of readout |
INPUT SPECIFICATIONS |
RTD input |
|
RTD type |
Pt10/20/50/100/200/250; Pt300/400/500/1000; Ni50/100/120/1000; Cu10/20/50/100 |
Cable resistance per wire |
50 Ω (max.) |
Sensor current |
Nom. 0.2 mA |
Effect of sensor cable resistance (3-/4-wire) |
< 0.002 Ω / Ω |
Sensor error detection |
Yes |
Short circuit detection |
< 15 Ω |
Linear resistance input |
|
Linear resistance min….max. |
0 Ω…10000 Ω |
Potentiometer input |
|
Potentiometer min….max. |
10 Ω…100 kΩ |
TC input |
|
Thermocouple type |
B, E, J, K, L, N, R, S, T, U, W3, W5, LR |
CJC via int. mounted sensor |
±(2.0°C + 0.4°C * Δt) |
Δt = |
Internal temp.-ambient temp. |
Sensor error detection |
Yes |
Sensor error current: When detecting / else |
Nom. 2 μA / 0 μA |
Current input |
|
Measurement range |
0…20 mA |
Programmable measurement ranges |
0…20 and 4…20 mA |
Input resistance |
Nom. 20 Ω + PTC 25 Ω |
Sensor error detection |
Loop break 4…20 mA |
Voltage input |
|
Measurement range |
0…12 VDC |
Programmable measurement ranges |
0/0.2…1; 0/2…10 VDC |
Input resistance |
Nom. 10 MΩ |
OUTPUT SPECIFICATIONS |
Display |
|
Display readout |
-1999…9999 (4 digits) |
Decimal point |
Programmable |
Digit height |
13.8 mm |
Display updating. |
2.2 times / s |
Input outside input range is indicated by |
Explanatory text |
Current output |
|
Signal range |
0…20 mA |
Programmable signal ranges |
0…20/4…20/20…0/20…4 mA |
Load (@ current output) |
≤ 800 Ω |
Load stability |
≤ 0.01% of span / 100 Ω |
Sensor error indication |
0 / 3.5 / 23 mA / none |
NAMUR NE43 Upscale/Downscale |
23 mA / 3.5 mA |
Output limitation, on 4…20 and 20…4 mA signals |
3.8…20.5 mA |
Output limitation, on 0…20 and 20…0 mA signals |
0…20.5 mA |
Current limit |
≤ 28 mA |
Relay output |
|
Relay functions |
Setpoint |
Hysteresis |
0…100% |
ON and OFF delay |
0…3600 s |
Sensor error reaction |
Break / Make / Hold |
Max. voltage |
250 VRMS |
Max. current |
2 AAC |
Max. AC power |
500 VA |
Max. load at 24 VDC |
1:00 AM |
OBSERVED AUTHORITY REQUIREMENTS |
EMC |
2014/30/EU |
LVD |
2014/35/EU |
EAC |
TR-CU 020/2011 |
APPROVALS |
DNV-GL Marine |
Stand. f. Certific. No. 2.4 |
UL |
UL 508 / C22.2 no. 14 |
