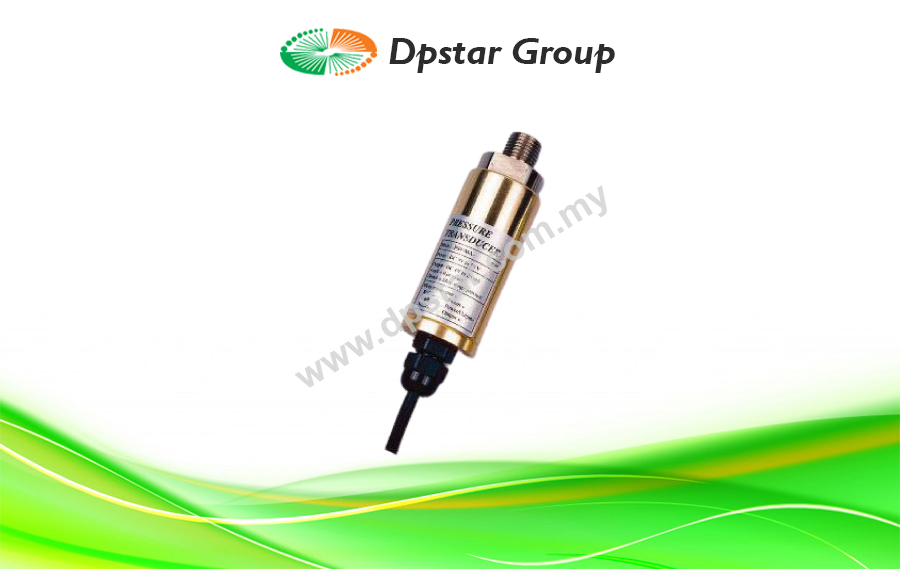

Pressure Transducers – Lutron PS-93MA-XXBAR

Features

6 models : 2/5/10/20/50/100/400 bar.
Zero pressure – 4 mA, Full scale – 20mA.
Power supply : DC 9V to 30V.
4 wires : 2 wires for power, two wires for signal.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Pressure Transducers, Pressure Transmitters

Pressure Transducer, 4 to 20 mA
Model : PS-93MA-XXBAR

6 models : 2/5/10/20/50/100/400 bar.
Zero pressure – 4 mA, Full scale – 20mA.
Power supply : DC 9V to 30V.
4 wires : 2 wires for power, two wires for signal.

Specifications

Max capacity & Model	• Max capacity 2 BAR ( 29 PSI ) Model : PS93MA-2BAR• Max capacity 5 BAR ( 72.5 PSI ) Model : PS93MA-5BAR• Max capacity 10 BAR ( 145 PSI ) Model : PS93MA-10BAR• Max capacity 20 BAR ( 290 PSI ) Model : PS93MA-20BAR• Max capacity 50 BAR ( 725 PSI ) Model : PS93MA-50BAR• Max capacity 100 BAR ( 1450 PSI ) Model : PS93MA-100BAR • Max capacity 400 BAR ( 5800 PSI ) Model : PS93MA-400BAR
Supply voltage	DC 9V to 30 V
Transducer Port Connector	1/4″ NPT or 1/4″ PS • Inclided one adapter connector that convert the 1/4″ NPT to 1/4 ” PS.
Span	± 1 % F.S. • Within 10 ℃ to 40 ℃ .
Zero	± 2 % F.S. • Within 10 ℃ to 40 ℃ .
Load impedance requirement	Load up to 500 ohms.
Operating Temperature	0 ℃ to 60 ℃ ( 32 to 140 ).
Operating Humidity	Max. 80% RH.
Output	Output : DC 4 to 20 mA • 4 mA = 0 pressure • 20 mA = Max. range pressure
Size	30 mm dia. x 85 mm.
Weight	160 g.
Cable length	1 meter.
Wire Connection	• Red…………………………………… Power + • Black…………………………………. Power – • White………………………………… Signal + • Green ……………………………….. Signal –
