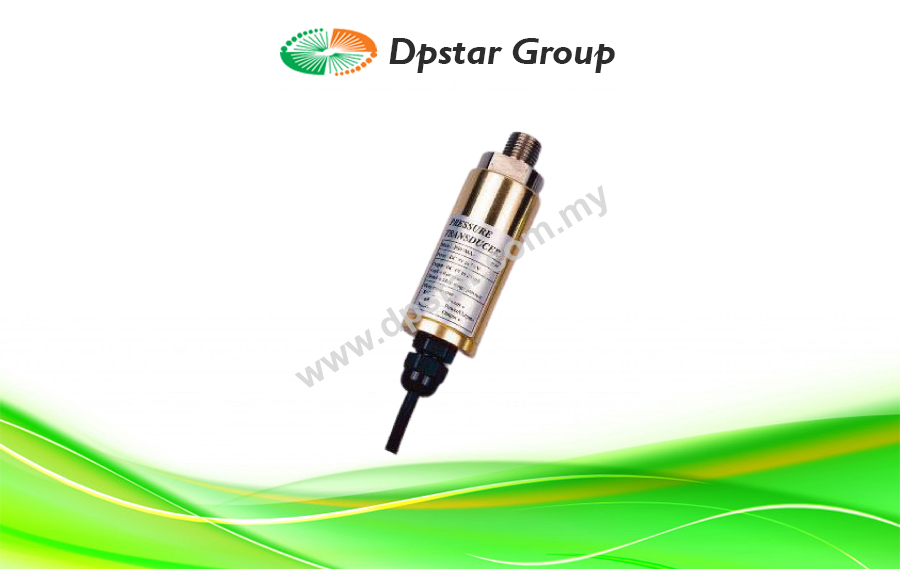

Pressure Transducers – Lutron PS-93DV-XXBAR

Features

6 models : 2/5/10/20/50/100/400 bar.
Zero pressure – 0 DCV, Full scale – 100 mV.
Power supply : DC 9V to 30V.
4 wires : 2 wires for power, two wires for signal.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Pressure Transducers, Pressure Transmitters

Pressure Transducer, 0 to DC 100mV
Model : PS-93DV-XXBAR

6 models : 2/5/10/20/50/100/400 bar.
Zero pressure – 0 DCV, Full scale – 100 mV.
Power supply : DC 9V to 30V.
4 wires : 2 wires for power, two wires for signal.

Specifications

Range, full scale	2 BAR ( 29 PSI ) • Model : PS93DV-2BAR5 BAR ( 72.5 PSI ) • Model : PS93DV-5BAR10 BAR ( 145 PSI ) • Model : PS93DV-10BAR20 BAR ( 290 PSI ) • Model : PS93DV-20BAR50 BAR ( 725 PSI ) • Model : PS93DV-50BAR
Supply voltage	DC 9V to 30 V.
Transducer Port Connector	1/4″ NPT or 1/4″ PS • Included one adapter connector that convert the 1/4″ NPT to 1/4 ” PS.
Span	± 1 % F.S. • Within 10 to 40 ℃.
Zero	± 2 % F.S. • Within 10 to 40 ℃.
Output Impedance	100 k ohm.
Operating Temperature	0 to 60 ℃ ( 32 to 140 ℉ ).
Operating Humidity	Max. 80% RH.
Output	Output : DC 0V to 100 mV • 0 DCV = 0 pressure • 100 DC mV = Max. range pressure
Wire Connection	• Red………………….Power + • Black………………. Power – • White……………….Signal + • Green …………….. Signal –
