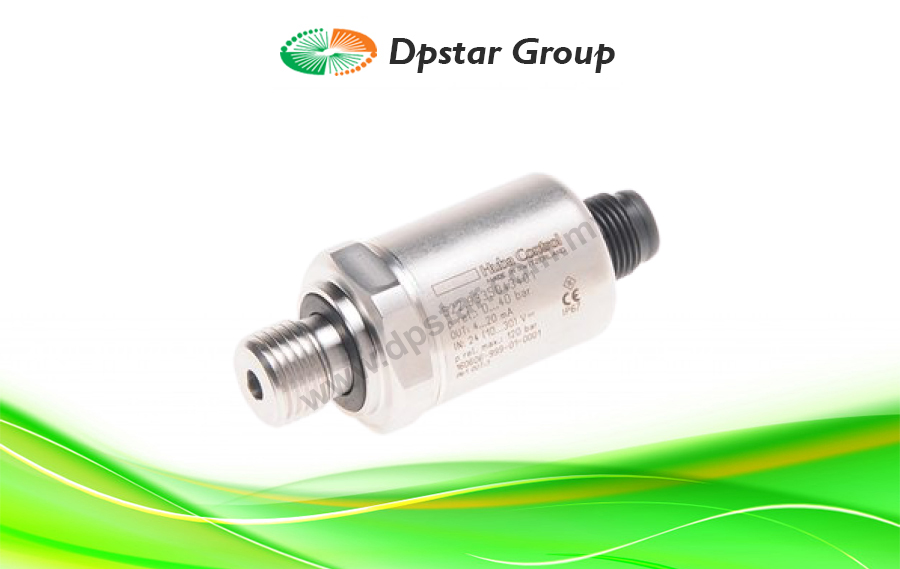

Pressure Sensor For Shipbuilding – Huba 522 Series

Features

  • Compact, rugged construction
  • Welded without sealing parts
  • Certified for shipbuilding with: Germanischer Lloyd; American Bureau of Shipping; Bureau Veritas; Det Norske Veritas; Lloyd`s Register
Enquiry
Category:
Love0

The compact type 522 pressure transmitter for shipbuilding is based upon the Huba Control developed thick film technology where the pressure measuring cell is fully welded. The pressure measuring cell incorporates a fully welded construction within the transducer housing. Highest requirements in various applications concerning burst can be met. All pressure transmitters of type 522 have the most important certifications for the shipbuilding industry.

Specification

Medium Liquids, gases and refrigerants
Pressure range 0 … 2.5 – 600 bar
Output 0 … 10 V, 4 … 20 mA
Accuracy typ. < 0.3% FS
Electrical connection Connector DIN 175301-803-A, M12x1,
swift connector
Pressure connection Inside thread or outside thread

Download

Huba Control 522 pressure sensor transmitter for shipbuilding 0 … 2.5 – 600 bar -DpstarGroup
