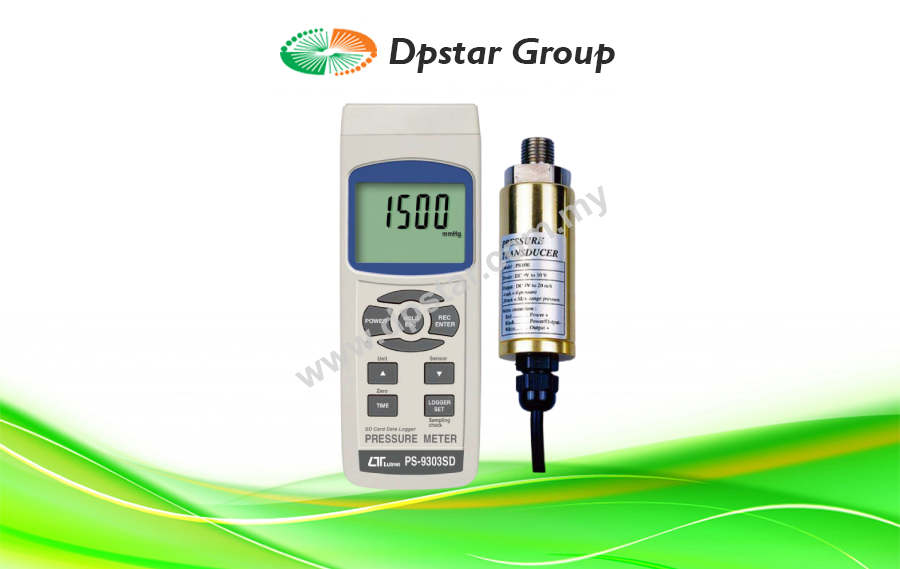

Pressure Meter, Full Line – Lutron PS-9303SD

Features

  • Real time data recorder, save the data into the SD memory card and can be download to the Excel, extra software is no need.
  • Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are
    necessary when change a new sensor .
  • Bar, PSI, Kg/cm2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere.
  • Data hold, Memory (Max., Min.).
  • RS232/USB computer interface.
  • Optional pressure sensor, PS100-xxBAR.
  • Patented.
  • Patent: Taiwan, China, Japan, Germany, USA pending.
Enquiry
Categories: , , ,
Love0

SD Card Real Time Data Recorder
Pressure Meter, Full Line
Model : PS-9303SD

  • Real time data recorder, save the data into the SD memory card and can be download to the Excel, extra software is no need.
  • Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are
    necessary when change a new sensor .
  • Bar, PSI, Kg/cm2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere.
  • Data hold, Memory (Max., Min.).
  • RS232/USB computer interface.
  • Optional pressure sensor, PS100-xxBAR.
  • Patented.
  • Patent: Taiwan, China, Japan, Germany, USA pending.

Specifications

Circuit 7 Custom one-chip of microprocessor LSI circuit.
Display • LCD size : 52 mm x 38 mm
• LCD with green backlight ( ON/OFF ).
Sensor type Can cooperate with optional 2, 5, 10, 20, 50, 100, 200, 400 bar sensor, new calibration are not necessary when change the new sensor .
Display units Bar, Psi, Kg/cm^2, mm Hg, inch Hg, meter H20, inch H20, Atmosphere
Accuracy ± ( 0.5% + 1 d )
• Under the signal from the sensor is at full scale ( 100 mV ).
• Meter only.
• Within 23±5 ℃.
Pressure sensor Cooperate the external pressure sensor that its output signal is 100 mV for full Resoscale.ref. page 16
Zero adjust Push button on the front panel.
Span adjust Push button gain adjustment, usage for calibration precisely if necessary.
Input signal from sensor DC 100 mV for full Scale.
Datalogger Sampling Time Setting range Auto
• 1 sec to 8 hour 59 min. 59 sec.
Sampling time can set to 1 second, but memory data may lossManual
• Push the data logger button
• once will save data one time
• Set the sampling time to 0 second.
• Manual mode, can also select the 1 to 99 position ( Location ) no.
Memory Card SD memory card. 1 GB to 16 GB.
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Sampling Time of Display Approx. 1 second
Advanced setting • SD memory card Format
• Set clock time ( Year/Month/Date, Hour/Minute/ Second )
• Set sampling time
• Auto power OFF management
• Set beep Sound ON/OFF
• Decimal point of SD card setting
• Set temperature unit to ℃ or ℉
• Set CD temperature compensation factor
• Set CD to TDS or TDS to CD, CD only
Data Output RS 232/USB PC computer interface.
• Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.• Connect the optional USB cable
USB-01 will get the USB plug.
Operating Temperature 0 to 50 ℃. ( 32 to 122 ℉ ).
Operating Humidity Less than 80% R.H.
Power Supply • Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
• ADC 9V adapter input. ( AC/DC poweradapter is optional ).
Power Current • Normal operation ( w/o SD card save data and LCD Backlight is OFF) :
Approx. DC 14 mA.
• When SD card save the data and LCD Backlight is OFF) :
Approx. DC 37 mA.
* If LCD backlight on, the power consumption will increase approx 12 mA.
Weight 489 g/1.08 LB.
Dimension • 177 x 68 x 45 mm
• (7.0 x 2.7x 1.9 inch)
Accessories Included Instruction manual…………………….. 1 PC
Optional Accessories • Pressure sensor, PS100-xxBAR,
* Refer to page
• Hard carrying case, CA-06.
• Soft carrying case, CA-05A.
• SD memory card ( 1 GB )
• SD memory card ( 2 GB )
• AC to DC 9V adapter.
• USB cable, USB-01.
• RS232 cable, UPCB-02.
• Data Acquisition software,SW-U801-WIN.

Download
