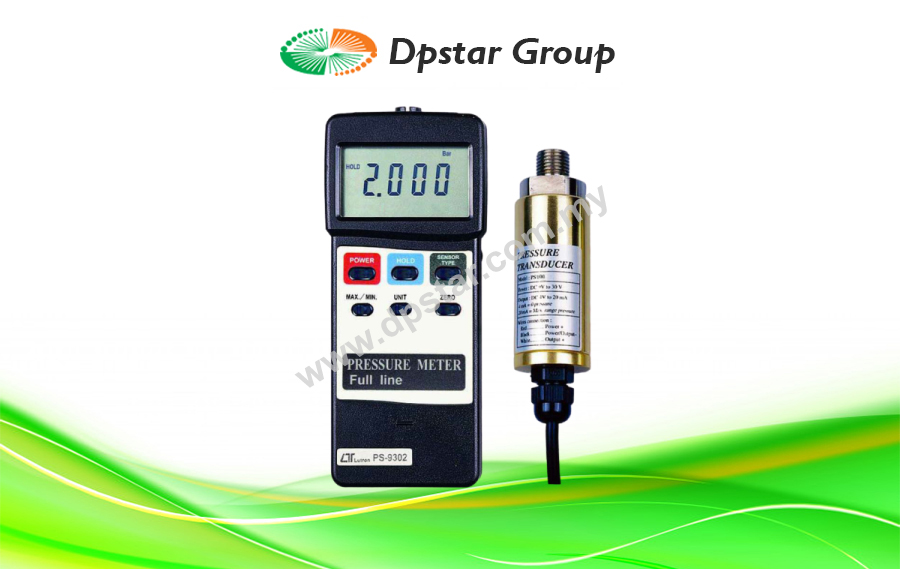

Pressure Meter, Full Line – Lutron PS-9302

Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are necessary when change a new sensor.
Bar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H20, meter/H2O, Atmosphere.
Data hold, Memory (Max., Min.), RS232.
Size : 180 x 72 x 32 mm.

Enquiry

Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are necessary when change a new sensor.
Bar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H20, meter/H2O, Atmosphere.
Data hold, Memory (Max., Min.), RS232.
Size : 180 x 72 x 32 mm.

Specifications

Circuit	Microprocessor LSI circuit.
Display	• 61 mm x 34 mm supper large LCD display. • 15 mm ( 0.6″ ) digit size.
Display units	bar, psi, Kg/cm2, mm/Hg, inch/Hg, meter/H20inch/H20, Atmosphere.
Pressure transducer	Optional, exciting voltage DC 5V, Sensor max. range output is DC 100 mV.
Zero adjust	Push button on the front panel.
Span adjust	Push button gain adjustment, usage for calibration precisely if necessary.
Transducer mV input signal	Approx 100 mV (Full Scale).
Exciting output power supply	DC 5 V.
Data hold	By push button
Data record	Record maximun & mininum readings.
Data output	RS 232/USB PC serial interface.
Sampling time	Approx. 0.8 second.
Power off	Auto shut off, saves battery life, or manual off by push button.
Operating temperature	0 to 50 ℃ ( 32 to 122 ℉ ).
Operating humidity	Less than 80% R.H.
Power supply	006P DC 9V battery(heavy duty).
Power current	Approx. DC 8.5 mA
Weight	345 g/0.76 LB
Dimension	180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).
Accessories included	Instruction manual……………………..1 PC
Optional accessories	• Pressure sensor, PS100-xxBAR refer to the bottom description. • Hard carrying case ( CA-06 ). • Data acquisition software, SW-U801-WIN. • RS232 cable, UPCB-01 • USB cable, USB-01
