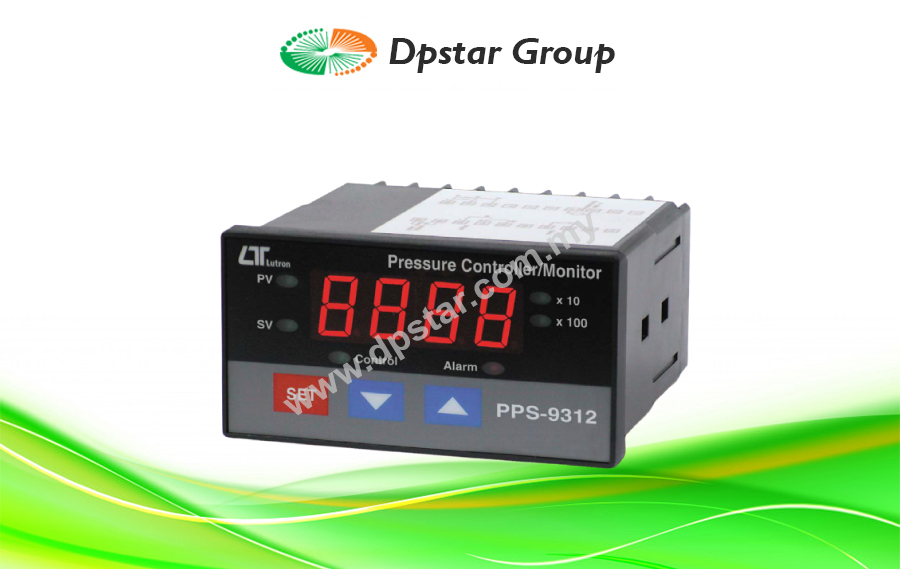

Pressure Controller/Monitor – Lutron PPS-9312

Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are necessary when changing a new sensor .
Unit select : Bar, PSI, Kg/cm2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Power : 90 ACV to 264 ACV, 50/60 Hz.
Cooperate with the 4-20 mA pressure input, sensor can be installed in the faraway position.
DC 12V output, used for the power of pressure sensor.
RS-232/USB computer interface.
DIN size : 96 x 48 mm. Depth : 107 mm.
Optional pressure sensor, TR-PS2W-XXBAR.
Optional USB cable, USB-01.
Optional data acquisition software, SW-U801-WIN, SW-E802.

Enquiry

Pressure Controller/Monitor
Model : PPS-9312

Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are necessary when changing a new sensor .
Unit select : Bar, PSI, Kg/cm2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Power : 90 ACV to 264 ACV, 50/60 Hz.
Cooperate with the 4-20 mA pressure input, sensor can be installed in the faraway position.
DC 12V output, used for the power of pressure sensor.
RS-232/USB computer interface.
DIN size : 96 x 48 mm. Depth : 107 mm.
Optional pressure sensor, TR-PS2W-XXBAR.
Optional USB cable, USB-01.
Optional data acquisition software, SW-U801-WIN, SW-E802.

Specifications
