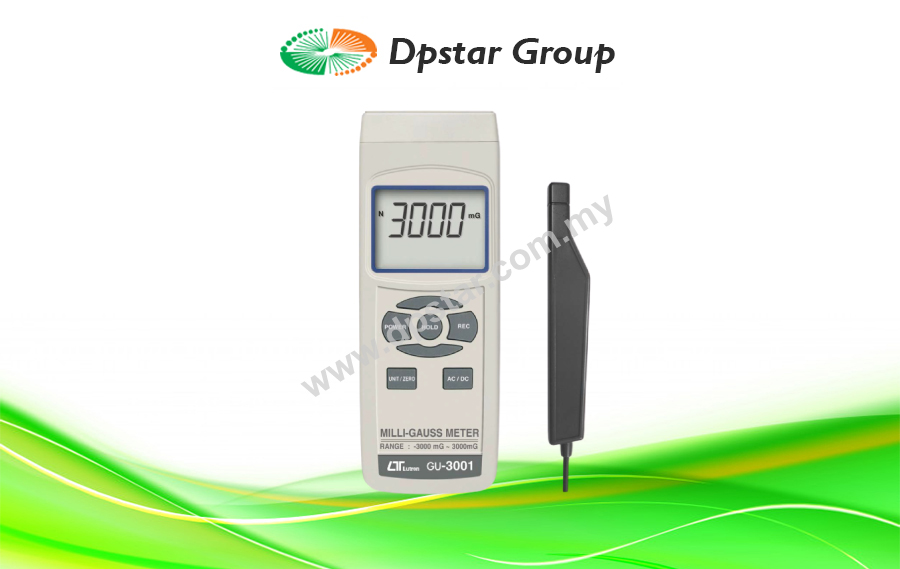

Precision Milli Gauss Meter – Lutron GU-3001

Features

  • Measurement: mG (milli Gauss), uT (micro Tesla)
  • Range:
    • 3,000 mG to 3,000 mG, DC/AC
    • 300.0 uT to 300.0 uT, DC/AC
  • Resolution: 1 mG/0.1 uT.
  • Sensor: High sensitivity gauss sensor.
  • Data hold. Record (Max, Min), RS232/USB.
  • 1.5 V battery (UM-4/AAA) x 6 PCs or DC 9V adapter.
Enquiry
Categories: , , ,
Love0

Precision Milli Gauss Meter
Model : GU-3001

  • Measurement: mG (milli Gauss), uT (micro Tesla)
  • Range:
    • 3,000 mG to 3,000 mG, DC/AC
    • 300.0 uT to 300.0 uT, DC/AC
  • Resolution: 1 mG/0.1 uT.
  • Sensor: High sensitivity gauss sensor.
  • Data hold. Record (Max, Min), RS232/USB.
  • 1.5 V battery (UM-4/AAA) x 6 PCs or DC 9V adapter.

Specification

Circuit Custom one-chip of microp rocessor LSI
Display • LCD size : 52 mm x 38 mm
• Dual function LCD display
Measurement Unit • mG : milligauss
• uT : micro Tesla
Measurement Range • – 3,000 mG to 3,000 mG.
• – 300 uT to 300 uT.
Frequency Response • DC
• AC : 40 Hz to 10 KHz
Resolution • 0.1 mG – 199.9 mG to 199.9 mG.
• 1 mG ≧ 200 mG,  ≦   -200 Mg
• 0.01 uT – 19.99 uT to 19.99 uT.
• 0. 1 uT ≧ 20.0 uT, ≦ -20.0 uT.
Accuracy ± ( 2 % + 2 mG )
• -1,000 mG to 1,000 mG
• -100.0 uT to 100.0 uT
Field Direction Uniaxial.
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value.
Display Sampling Time Approx. 1 second.
Power off Manual off by push button or Auto shut off to save battery life.
Data Output RS 232/USB PC serial interface
• Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.• Connect the optional USB cable
USB-01 will get the USB plug.
Operating Temperature 0 to 50 °C.
Operating Humidity Less than 85% R.H.
Power Supply • DC 1.5 V battery ( UM4, AAA ) x 6 PCs,
• Alkaline/heavy duty type or equivalent.
Power Current Approx. DC 20.5 mA
Weight • Main instrument : 321 g/0.71 LB.
@ Battery is included.• Probe : 78 g/0.17 LB.
Dimension • Main instrument :
173 x 68 x 42 mm
(7.9 x 2.7x 1.2 inch)• Probe :
177 x 29 x 17 mm
Accessories Included • Instruction manual…………………………..1 PC
• Probe…………………………………………….1 PC
• Hard Carrying case, CA-06…………… 1
Optiona Accessories • RS232 cable, UPCB-02
• USB cable, USB-01
• Data Acquisition software, SW-U801-WIN
