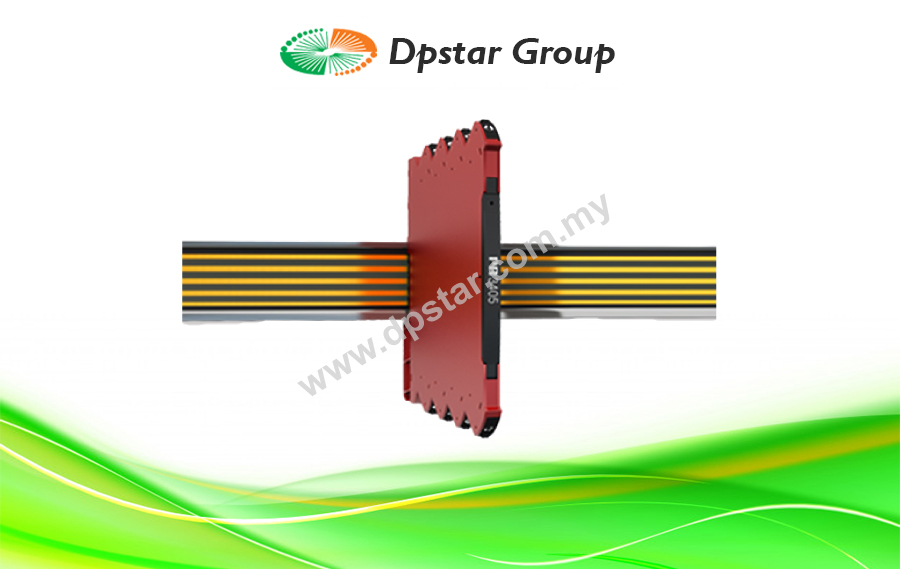

Power Connector Unit – PR Electronics 3405

Features

  • Slimline housing of 6 mm
  • Supplies DIN rail from supply terminals
  • Can pass up to 2.5 A
  • Up to 100 units can be powered
Enquiry
Category:
Love0

Applications

  • Power can be connected to the DIN rail from supply terminals.
  • Alternatively a powered DIN rail can supply power to the terminals.
  • Installation in ATEX Ex zone 2 / IECEx zone 2 / FM division 2.
  • Suitable for environments with high vibration stress, e.g. ships.

Technical characteristics

  • 3405 can pass up to 2.5 A
  • With 3405, up to 115 units can be powered (85 units for 3111, 3112 & 3113).

Specification

ENVIRONMENTAL CONDITIONS
Operating temperature -25°C to +70°C
Relative humidity < 95% RH (non-cond.)
Protection degree IP20
MECHANICAL SPECIFICATIONS
Dimensions (HxWxD) 113 x 6.1 x 115 mm
Weight approx. 65 g
DIN rail type DIN EN 60715/35 mm
Wire size 0.13…2.5 mm2 / AWG 26…12 stranded wire
Screw terminal torque 0.5 Nm
Vibration IEC 60068-2-6
2…25 Hz ±1.6 mm
25…100 Hz ±4 g
COMMON SPECIFICATIONS
Supply
Supply voltage 16.8…31.2 VDC
Internal power dissipation 0.25 W (max.)
Required external fuse 2.5 A
I.S. / EX MARKING
ATEX II 3 G Ex nA IIC T4 Gc
IECEx Ex nA IIC T4 Gc
FM, US Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, AEx nA IIC T4
FM, CA Cl. I, Div. 2, Gp. A, B, C, D T4 or Cl. I, Zone 2, Ex nA IIC T4
OBSERVED AUTHORITY REQUIREMENTS
EMC 2014/30/EU
LVD 2014/35/EU
RoHS 2011/65/EU
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011
APPROVALS
ATEX KEMA 10ATEX0147 X
IECEx KEM 10.0068X
c FM us FM17US0004X / FM17CA0003X
c UL us, UL 61010-1 E314307
EAC Ex RU C-DK.HA65.B.00355/19
DNV-GL Marine TAA00001RW
