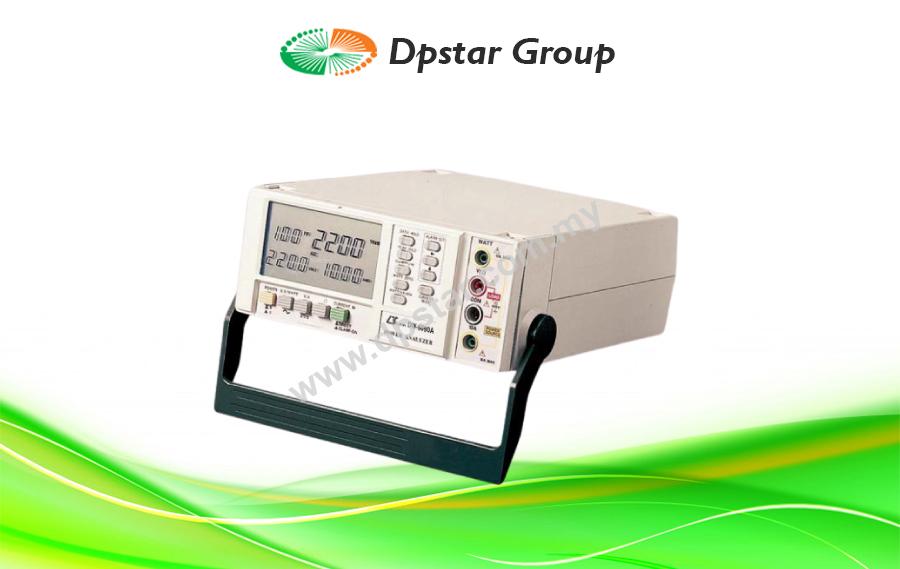

Power Analyzer, Bench Type – Lutron DW-6090A

Features

Large LCD, multi-displays.
True rms for WATT, ACV, ACA.
Watt, VA, Power factor, ACV, ACA, VAr, Whr, DCV, DCA, ohms, RS-232.
Accept current probe & CT input. Battery power.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Power Analyzers, Watt Meters, Watt Meters (Power Analyzer)

Power Analyzer, Bench Type
Model : DW-6090A

Large LCD, multi-displays.
True rms for WATT, ACV, ACA.
Watt, VA, Power factor, ACV, ACA, VAr, Whr, DCV, DCA, ohms, RS-232.
Accept current probe & CT input. Battery power.

Specification

Display	• 93 mm x 52 mm large LCD ( Liquid Crystal Display) display. • Multi-display unit, show Volt, Ampere, Watt, Power factor or Hz at same time.
Measurement Unit	WATT, VA, Whr,, Power factor, ACV, ACA, CT 1000/5 A – 80 ACA, DCV, DCA, Hz, ohm.
Zero Adjustment	Watt : External adjustment by push button. DCV, ACV, DCA, ACA : Automatic adjustment.
Polarity	Automatic switching, “-” indicates reverse polarity.
Current input mode	Direct input, inductive clamp probe or CT.
Over input Indication	Indication of ” 　- – – – or ” 　- – – – .
Data Output	RS232 serial interface.
Sampling Time	• W, VA, ACA, ACV, PF, Hz : Approx. 1.5 Sec. • DCV, DCA, OHM : Approx. 1 Sec.
Operating Temp.	0°C to 50°C ( 32°F to 122°F ).
Operating humidity	Less than 80% R.H.
Power supply	• Battery power : DC 9V, 1.5 V AA (UM-3) battery x 6 PCs. • AC power : AC to DC 9V adapter ( 500 mA ), optional.
Power Consumption	Battery power : Approx. DC 50 mA
Weight	Approx. 1.6 Kg ( 3.52 LB ).
Dimension	280 x 210 x 90 mm ( 11.0 x 8.3 x 3.5 inch ).
Standard Accessories	• Test lead ( red & black )……………….. 1 pair. • Instruction Manual………………………. 1 PC.
