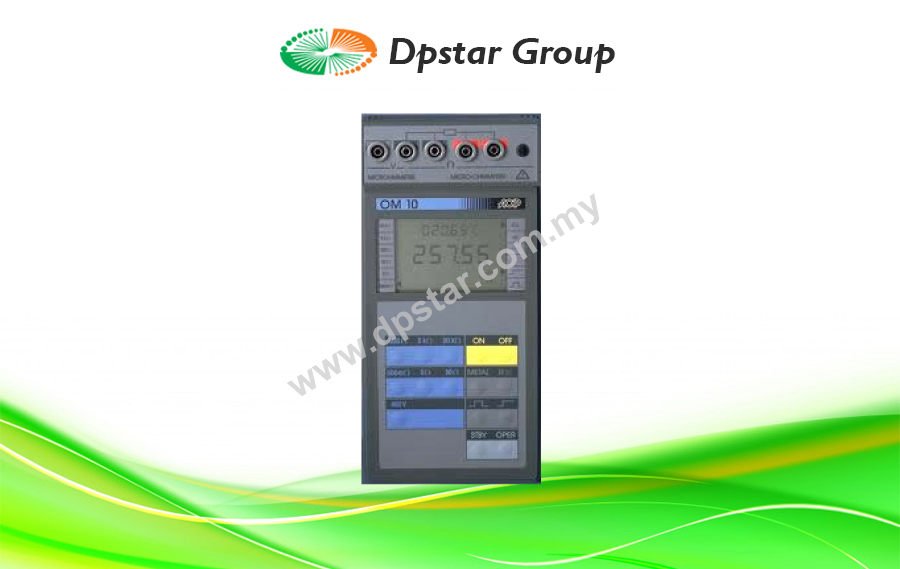

Portable Micro-Ohmmeter Up To 50 KΩ And 100 Ma – AOIP OM 10

OM 10 portable micro-ohmmeter performs 4-wire measurements of inductive and non-inductive resistances up to 50 KΩ with continuous or pulse measuring current up to 100 mA. It works at a resolution of 10 µΩ and an accuracy of 0.05%. The accuracy of measurements is also ensured by the automatic compensation of thermal electromagnetic forces, the compensation of ambient temperature (internal sensor) at 20°C and by the selection of the metal type. OM 10 can also measure DC and AC voltages up to 400 V.

Applications

• Cable resistance and resistivity measurement
• Inductive resistance measurement (transformers, motors…)
• Contact resistance measurement (connectors, switches, relays…)
• Metallisation, earth bounding and ground continuity tests
• Tests of low power electrical components (fuses…)
• Tests of heat-sensitive devices
• Tests of surface states, mechanical bonds and materials
