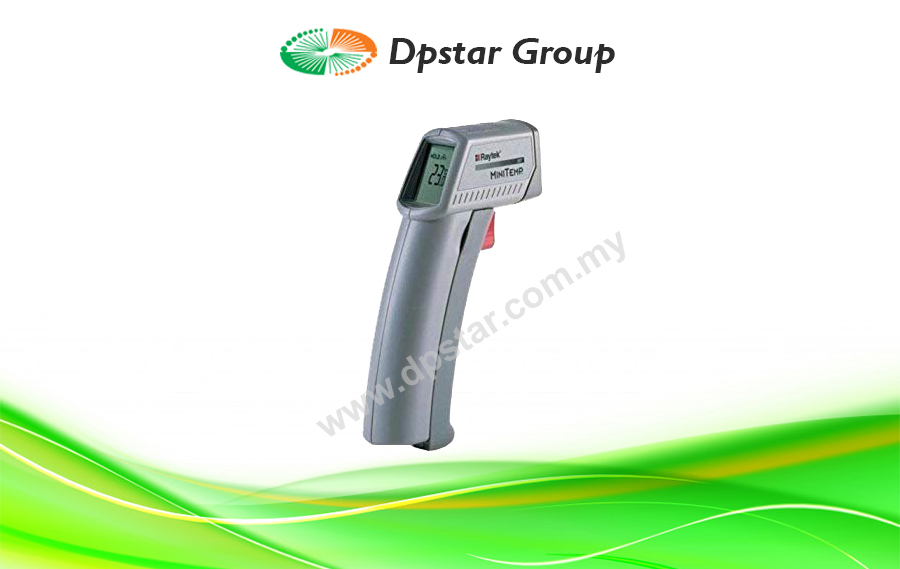

Portable Infrared Thermometer Automotive Handheld – Raytek MiniTemp MT4 Series

Features

  • Simple to use
  • Instant readings
  • Laser Point (MT4)
  • Large, easy to read display
  • Temperature Range (MT4)
  • -18º to 400ºC (0º to 750ºF)
  • ºC or ºF selectable
Enquiry

MiniTempMT4 provides great ways to solve common temperature measurement problems, and are small enough to fit in your pocket! The popular MiniTemp MT4 also includes single dot laser sighting to assist with aiming.

Infrared (IR) thermometers have become the preferred tool for diagnostics and inspection where temperature is an indicator. Raytek IR thermometers are valued by professionals in a variety of industries—from industrial maintenance to food service, because they quickly, accurately and safely measure surface temperature! Anywhere that temperature is a factor in process, product quality or diagnostics, a Raytek IR thermometer should be close at hand. IR thermometers are easy to use, and since they do not contact the object being measured, they are the safest way to measure hot, hard-to-reach, or moving parts, while eliminating potential damage and contamination.

Specification

Temperature range -18 to 400°C
(0 to 750°F)
Accuracy -1°C (30°F) to 275°C (525°F) ±2% or
±2°C (±3.5°F) whichever is greater
-18°C (0°F) to -1°C (30°F) ±3°C (±5°F)
Repeatability ±2% of reading, or ±2°C (±3°F), whichever is greater
Response time 500 mSec, 95% response
Spectral response 7–18 µm
Emissivity* pre-set 0.95
Ambient operating range 0 to 50°C (32 to 120°F)
Relative humidity 10–95% RH noncondensing, @ up to 30°C (86°F)
Storage temperature -20° to 65°C (-4° to 150°F) without battery
Weight / Dimensions 227 g (0.5 lb); 152 x 101 x 38 mm (6 x 4 x 1.5 in)
Power 9V Alkaline or NiCd battery (included)
Battery life (Alkaline) 12 hrs
Laser Class II
Distance to Spot Size 8:01
Typical Distance to Target (Spot) Up to 1.5m or 4 ft
Display Hold (7 seconds)
LCD Backlit
Temperature Display ºC or ºF selectable
Display Resolution 0.2ºC (0.5ºF)
Options/Accessories Nylon Holster
Warranty 1 Year**
