Polyimide-Tape Wrapped And Glass Insulated Nickel Clad Copper Conductor Heat Resistant Cable – Ninomiya TN210

Features

  • Smaller in diameter and lighter with the same allowable current, because the volume resistivity is 1/4 of nickel conductor.
  • Easy to process and wire, because it is softer than nickel conductor.
  • The thickness is 20-30 times of normal nickel-coated wire (1-5 μm). (Nickel vs. copper area ratio: approx. 28:72.)
  • The conductivity varies depending on changes in temperature. Even if used continuously under a temperature of 220℃, the conductivity varies only slightly.
  • The tensile strength varies only slightly even if used under a temperature of 220℃.
  • Using nickel as the surface material, far more resistant to corrosion than copper wire.
Enquiry
Categories: , , ,
Love0

Polyimide-tape-wrapped and glass-insulated nickel-clad-copper conductor heat-resistant wire (TN210) is made of nickel-clad-copper wires which are flexible and highly resistant to heat and corrosion, and covered with polyimide-tape and glass fiber. Maximum operation temperature of this series is 220℃.

Construction

  • Conductor
    Several nickel-clad-copper wires (NPC) are stranded to make a conductor.
    Construction of the conductor is shown in below table. NPC has lower conductor resistance and more flexibility than nickel wire
  • Insulator

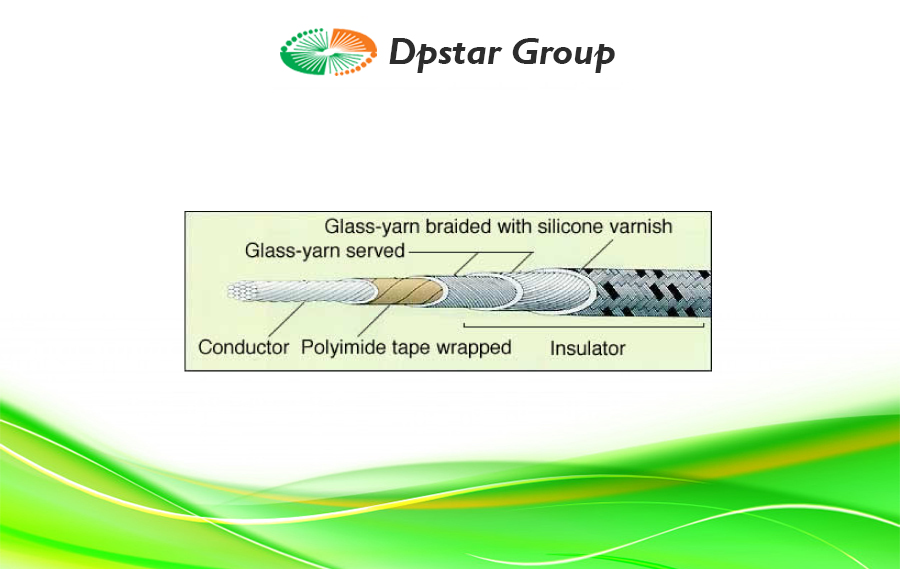

    Conductor is double wrapped with polyimide-tape, double served with glass evenly (if the nominal sectional area of the conductor is 8.0 Sq. or more, braided with glass-yarn instead of having the serving process), braided with glass-yarn, and baked with silicone varnish on the surface to make an insulator.
  • Color
    The standard is two red-spiraled stripes on the white ground.

Applications

Widely used as lead wires of electric heaters or wirings in high-temperature equipments where, especially resistance to heat and corrosion is required.

Specification

Parts No. Conductor Taping thickness Served-wire shielding thickness Braind shielding thickness Finished OD Conductor resistance Insulation resistance Test voltage (AC 1 min.)
Sectional area mom. Construction No. of wires/Dia. of elemental wire OD
mm2 No. of wires/mm mm mm mm mm mm Ω/Km MΩ・Km V
8451NN00N 0.75 30/0.18 1.1 0.025 0.15 0.3 2.1 29.68 10 1,500
8551NN00N 1.25 50/0.18 1.5 0.025 0.15 0.35 2.6 27.8 10 1,500
8651NN00N 2 37/0.26 1.8 0.025 0.15 0.35 2.9 11.53 10 1,500
5651NN00N 3.5 66/0.26 2.4 0.025 0.15 0.35 3.5 6.335 10 1,500
8851NN00N 5.5 35/0.45 3.1 0.025 0.15 0.35 4.2 4.07 10 1,500
8951NN00N 8 50/0.45 3.7 0.025 – 0.6 5 2.846 10 1,500
9051NN00N 14 88/0.45 4.9 0.025 – 0.6 6.2 1.622 10 1,500
