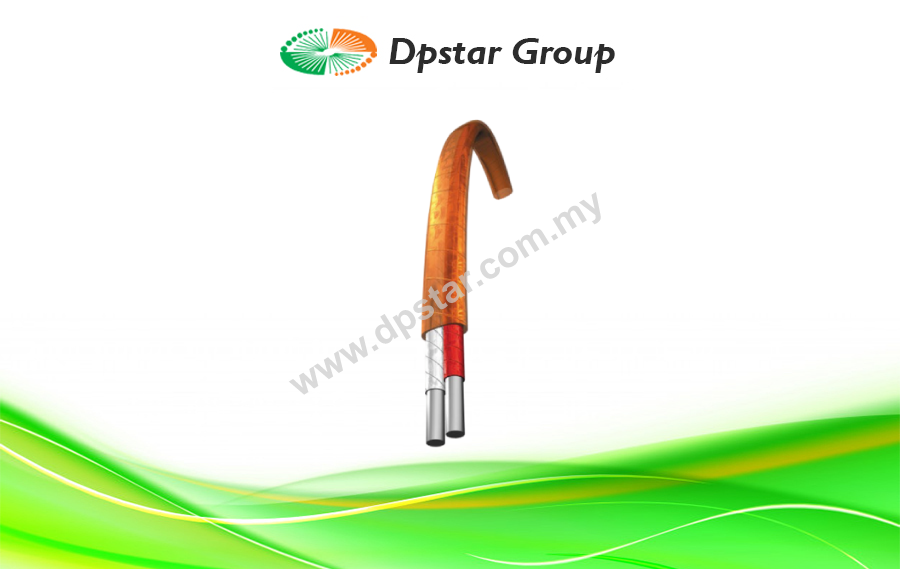

Polyimide Tape Insulated Cable – TEW&C K/K

Features

  • Continuous use up to 500F (260C)
  • Unaffected by Extreme or Rapid Temperature Variations
  • Excellent Solvent and Moisture Resistance
  • Flame Retardant
  • High Abrasion and cut-thru resistance
  • Resistant to gamma Radiation
  • Does Not Burn
Enquiry
Category:
Love0

Polyimide Tape is a high performance insulating tape that gets fused to conductor and jackets. This product provides excellent moisture and abrasion resistance, high dielectric strength and it retains much of its physical integrity after gamma radiation exposure. FEP is used as the adhesive agent during the fusing process. Polyimide Tape product operates up to 500 Degrees F (260 Degrees C).

Applications

  • Aerospace Industry
  • Power Generation
  • Laboratories
  • Petrochemical Plants
  • Cryogenic
  • Applications
  • Pharmaceutical
  • Autoclaves

Available Options

  • Metal Overbraid
  • Galvanized Half-Oval Armor
  • Twisted/Shielded Pair
  • Small Diameter HF/D Overall Jacket (One Insulated One Bare Conductor)
  • Special Color Codes
  • Calibration Test Reports

Specification

Conductors Solid or stranded thermocouple wire per ASTM E230 & ANSI MC96.1
Insulation Two layers of fused polyimide tape, color coded with a polyimide coating
Construction Parallel conductors
Jacket Two layers of fused polyimide tape
Operating Temperature -400F (-240C) t0 +500F (+260C) continuous
Limits of Error Conforms to ASTM E230, IEC 584 and ANSI MC 96.1
Color Code Conforms to ASTM E230 and ANSI MC96.1 (International Color Codes Available) *

*Note – Polyimide jackets are not color coded

Download

TEW&C K/K – Polyimide Tape Insulated Cable-DpstarGroup
