Paperless Recorder – Ohkura VM6100

Features

  • Large capacity storage by Compact-Flash
  • Quick search and display of past data
  • Various display capability
  • PC support software supplied as standard
  • Compact size
  • 18-point recording (Option)
  • Communication function
  • LCD extinguishing function
Enquiry

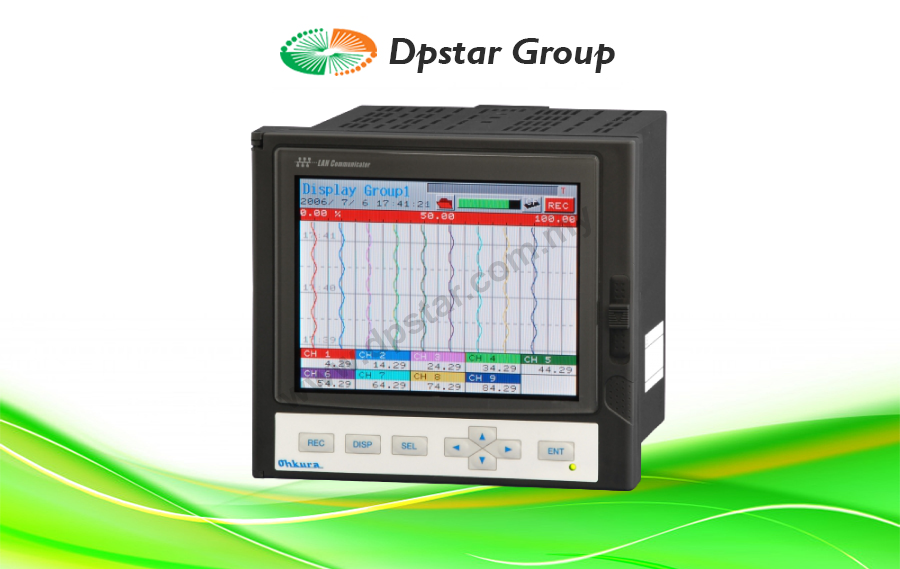

This is a paperless recorder that displays measured data on the LCD in real time and stores data in Compact-Flash. The type of input such as thermocouple, resistance bulb, D.C. voltage (current), etc. can be arbitrarily set to 18 channels at the maximum. The data stored in Compact-Flash can be regenerated on the screen, and the use of supplied support software allows the data to be regenerated on a PC screen. The data recorded in ASCII format can be directly read in a spreadsheet such as Excel, which facilitates the processing on a PC. (The data recorded in binary format cannot be read in.)

Specification

Input system
        Number of input points 9 points or 18 points (Can be selected at the time of purchase)
        Input circuit Input mutual isolation
Resistance bulb measured current: about. 1 mA
        Measuring cycles 9 or 18 points….100ms cycles
        Input types Thermocouple, resistance bulb, DC voltage, and DC current (Shunt resistors volt are fitted in input terminals). Note) Provide a shunt resistor (type: WPSR222B000001A) separately.
Indication system
        Indicator 5.7” TFT color LCD (320 x 240 dots) with backlight, no contrast adjustment. On the LCD, certain picture elements remain lit or extinguished. On account of the nature inherent to LCD, the brightness may be non-uniform. But, such are not troubles.
        Color of indication 14 colors
        Applicable language English, Japanese
Keyboard
        No. of Keys 8
        Function Use to select various screens and set various parameters
Alarm function
        No. of settings Up to 4 alarms for each channel are settable
        Type of alarm High/Low limits
        Indication Status (alarm types) is displayed on digital display unit when an alarm occurs. Historical display on alarm summary (Alarm start/cancel time and alarm types)
        Hysteresis Set within the recording range of 0 to 100%
Acts on high or low limit alarm, and does not affect the battery alarm nor memory full alarm.
        Relay output Number of points; 10 (option: Cannot be selected if the number of input points is 18.)
        Transistor output (open collector output) 18 points (option)
        Alarm latch function Holds alarm indication and alarm output even after measurement value has left the alarm range. ON/OFF operation is performed according to key setting.
Power supply
        Rated power voltage 100 to 240V AC
        Range of operating voltage 90 to 264V AC
        Supply frequency 50/60Hz ± 2% (both employable)
Power consumption
        Power voltage Consumption
        100V AC About 36VA
        240V AC About 47VA
