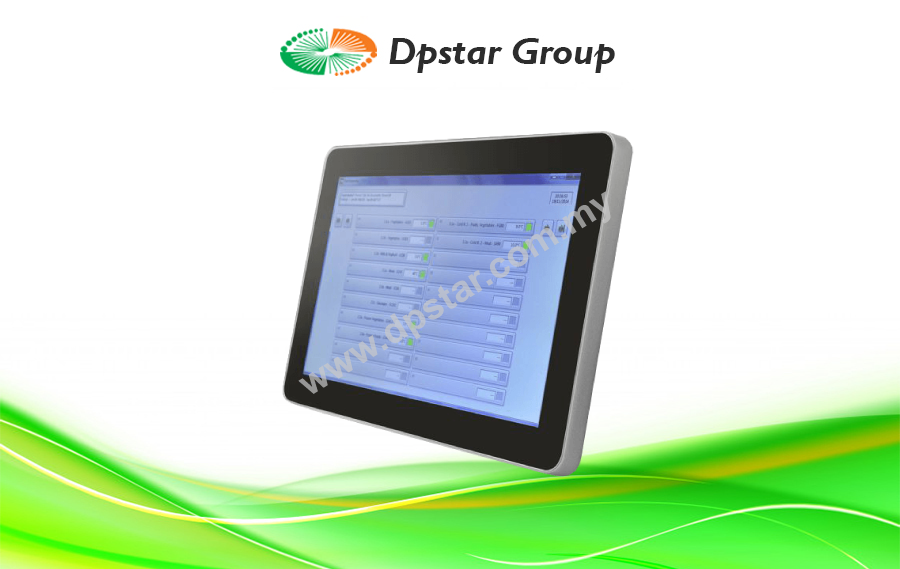

Panel PC For HACCP Functions – Lae Electronic PPC-10A Series

Features

Panel PC with Tab5 software for HACCP functions
Compact touchscreen system for data monitoring, recording, alarm event management and remote access

Category: Lae Electronic ~ Supervisory Systems

Applications

Restaurants, supermarkets, service stations.

Specification

System	Processor	Intel® Atom N2600 Dual Core 1.6GHz
	System Chipset	Intel® NM10 Chipset
	System Memory	2GB SODIMM DDR3-800
	Storage	32GB mSATA SSD
Display	Size/Type	10.1” 1024×600 capacitive multi-touch screen
	Brightness	200cd/m2 typ.
	Contrast	500:1 typ.
	Viewing angle	Horizontal: -70…70; Vertical: -50…60
	Colors	262K
Input / Output	Serial ports	1 x RS-232/422/485; 1 x RS-232
	USB ports	2 x USB 2.0
	Ethernet	2 x RJ45 10/100/1000 Mbps
Mechanical	Dimensions	263.3 (W) x 171.0 (H) x 35.7 (D) mm
	Mounting	Panel or VESA 75 × 75 mm
	Cooling system	Fanless
Environment	Op. Temperature	0 to 50 °C
Environment	Op. Humidity	30 to 90% (non condensing)
Software	Op. System	Windows Embedded Standard 7 / OpenSUSE Linux
