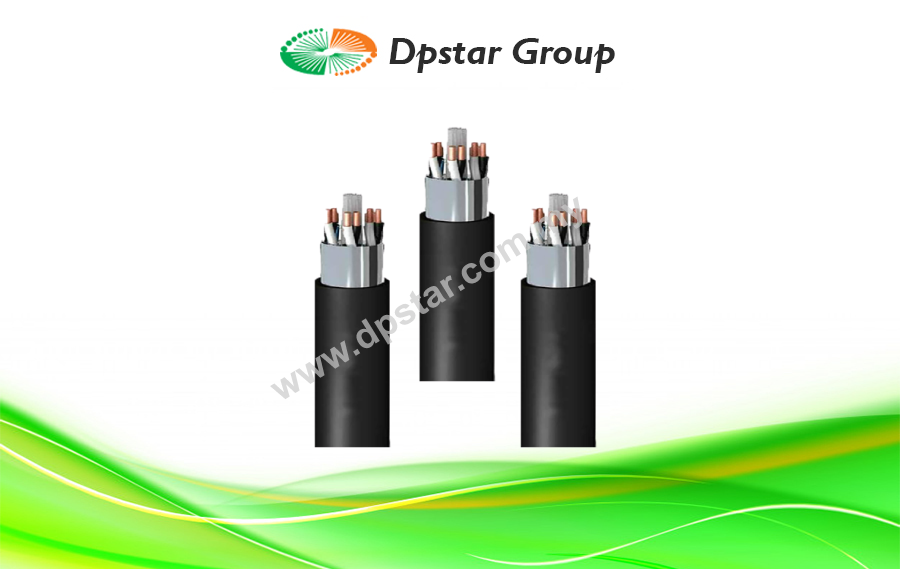

Non armoured LK Instrumentation Cable – RE-2X(ST)Y-FL

Features

– UV Resistant
– Meter by meter marking
– Flame non-propagation IEC 30332-1
– Minimum bending radius: 10 x cable diameter
– Flame retardant (Fire non propagation) IEC 60332-3-23 (Cat A)

Enquiry
Category:
Love0

Applications

Flexible cable for data transmission between industrial equipment. The overall/collective screen make them especially suitable for their use in high electromagnetic noise environments.

Specification

Conductor Multi stranded annealed electrolytic copper, class 5, (fexible) based on IEC 60228.
Cross section 0.75 mm2, 1.0 mm2, 1.5 mm2
Insulation XLPE (According to IEC 60502-1) of 0,5 mm thickness. Core
IDENTIFICATION:
Pair: each unit numbered (Colours available on request)
Triad: black & white & red. Each unit numbered.
Laying-up Twisted pairs, assembled in concentric layers.
Overall Screen Aluminum + polyester (PEPT) tape with 100% coverage + tinned copper drain wire of 0.5 mm.
Outer sheath Flexible PVC fame retardant sheath, black color. The ripcord allows you to gently tear the outer-sheath allowing you to gently peel it away without damaging the screen. Blue for IS. (upon request)

Download

RE-2X(ST)Y-FL – Non armoured LK Instrumentation Cable-DpstarGroup
