N Type Mini Limit Switch – Hanyoung Nux LS-802N / 803N / 803RN / 804N / 807N / 808N

Features

Compact size and light weight by applying the plastic case
Plastic case which provides safety regarding the electric leakage
Various actuators (6 types) provide wide application
IP54 protective structure (Applied only when using our company connector model HYC-M1 in the wire opening)
Connector rating of wire opening : 1/2 PF

Category: Limit / Micro Switch

N Type Mini Limit Switch
Model : LS-802N / 803N / 803RN / 804N / 807N / 808N

Compact size and light weight by applying the plastic case
Plastic case which provides safety regarding the electric leakage
Various actuators (6 types) provide wide application
IP54 protective structure (Applied only when using our company connector model HYC-M1 in the wire opening)
Connector rating of wire opening : 1/2 PF

Specification

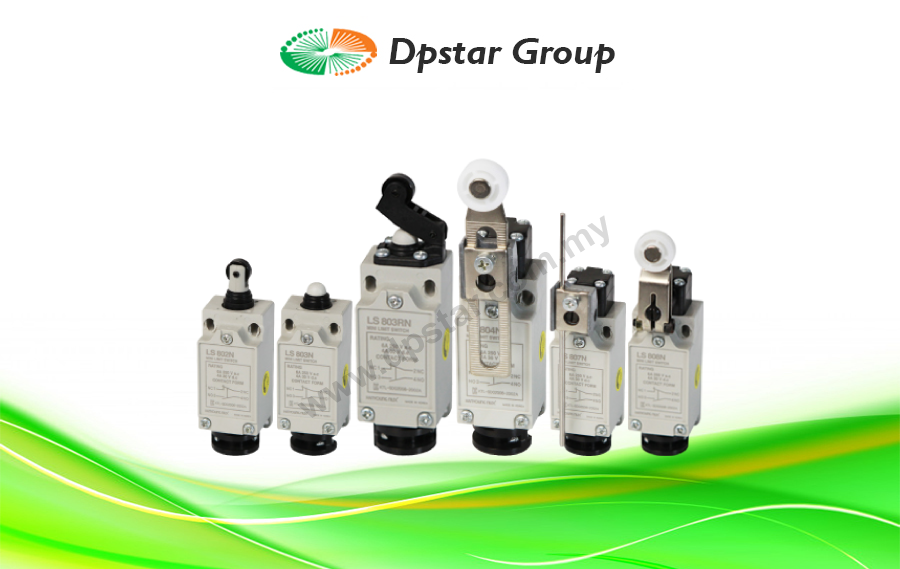

Model		Roller plunger	Push plunger	Roller arm	Roller Adjustable Lever	Adjustable Rod Lever	Roller Lever
		HY-LS802N	HY-LS803N	HY-LS803RN	HY-LS804N	HY-LS807N	HY-LS808N
Contact structure		M3 screw tightening terminal, 2 circuits double type (1a1b)
Contact material		AgNi
Protective structure		IP54 (Only when using our company product HYC-M1, M2 in the wire opening)
Rated current(le)		6 A 250 V a.c, 4 A 30 V d.c (AC-12, AC-13, AC-15, DC-13)
Dielectric strength		2,000 V a.c 50/60 Hz for 1 min (between the terminal and non-recharing metal part)
Insulation resistance		Min 100 MΩ (500 V d.c insulated ohmmeter)
Contact resistance		Max 25 MΩ (default value)
Rated voltage(Ue)		250 V a.c, 30 V d.c
Actuator intensity		5 times larger than O.F (required force for the operation), operating direction 1 min
Vibration		Double amplitude 1.5mm, frequency 10 ~ 55 Hz, continuously 2 hour
Shock		100 m/²s (durability), 50 m/²s (malfunction)
Allowable operation speed		0.1 ~ 0.5 ㎧ (without damaging the actuator)
Life expectancy	Mechanical	Min 1 million times (less than open/close frequency 120 times/min)
	Electrical	Min 100 thousand times (less than open/close frequency 30 times/min)
Ambient temperature		-10 ~ 70 ℃
Ambient humidity		45 ~ 95 % R.H.
Weight		Approx 60g (HY-LS803N)
