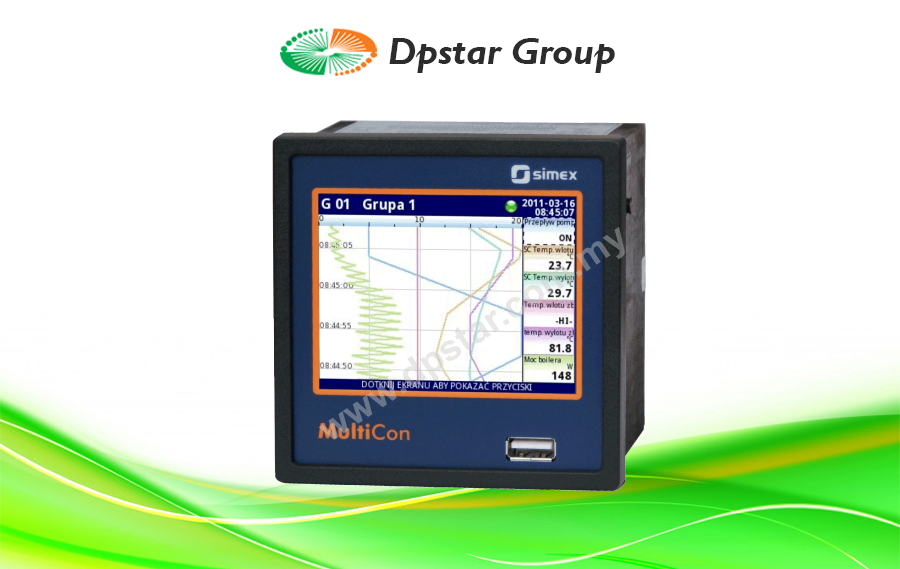

Multi Controller – Simex MultiCon CMC-99 Series

Features

  • Process management directly from the screen
  • Different screens for a single process
  • Graphics of the monitored process
  • Quick visualization
  • Free arrangement of indicators,
  • Operator’s work comfort
  • Easy adjustment to specialized requirements,
  • Quick editing – new graphics and change of indicator arrangement is enough,
  • Modification of indicator arrangement during the device operation.
Enquiry
Category:
Love0

The MultiCon CMC-99 is a powerful and versatile compact-multi channel-controller with a capability to record data, if the recording function is requested and activated. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the MultiCon CMC-99 is build in a quite small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 27 available input/output modules.

Specification

Inputs 9 universal inputs max.; 48 analogue inputs (0/4-20 mA or 0/1-5V or 0/2-10V) max.; 48 digital inputs max.; 24 thermocouple inputs max.; 12 RTD inputs max.; 12 counter/ flowmeter/ ratemeter inputs max.; 1 digital input 24V DC (available in standard, integrated with PS3 or PS4 power supply module)
Power consumption typical 15 VA; max. 20 VA
Outputs 8 analog (4-20 mA) max.; 16 relay (1A/250V) max.; 4 relay 5A/250V max. or 48 SSR outputs, sensor supply: 24 V DC ± 5% (200 mA max. for current inputs)
Case material NORYL – GFN2S E1
Measurement range depends on input
Protection class IP 65 (front), available options: additional frame IP 65 for panel cut-out sealing, transparent door STD-99; version with front USB: IP 40 or IP 54 (when fitted with STD-99 transparent door)
Operating temperature 0°C ÷ +50°C (optional -20°C ÷ +50°C with PCB conformal coating)
Display 3.5 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touch screen
Power supply 19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC
Communication interface standard: RS-485 (Modbus RTU), 1 x USB Host; ETU version: 1 or 2 x USB Host, 1 x Ethernet 10 Mb/s; enhanced ACM version: 2 x RS-485, 1 x RS-485/232, 1 or 2 x USB Host, 1 x Ethernet 10 Mb/s
Available data recording speed from 0,1 s to 24 h with resolution 0,1 s
Internal memory capacity internal 1,5 GB
Storage temperature  -10°C ÷ +70°C (optional -20°C ÷ +70°C with PCB conformal coating)
Case dimensions 96 x 96 x 100 mm
Case panel mounting

Download

Simex MultiCon CMC-99 Series Multi Controller_DpstarGroup
