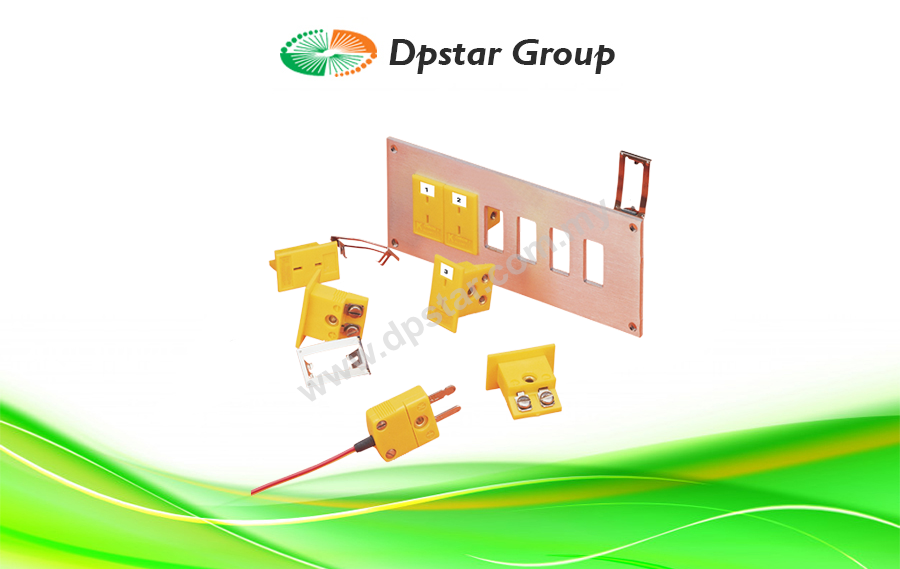

Miniature Panel Jacks – Omega MPJ Series

Features

  • Compact Size
  • Easy mount with spring clip
  • Accessible terminal screws
  • Color-coded
  • Accepts OMEGA’s as well as all Industry Standard
  • Miniature male connectors
  • Glass-Filled Nylon rated from -29 to 180°C (-20 to 356°F)
Enquiry
Categories: , , ,
Love0

Dpstar is a professional thermocouple supplier in Malaysia. We provide a wide range of top quality connectors assemblies for industrial and production to serve all your business needs. Your One-Stop Source for Leading Brands of Test, Measuring Tools and Equipment. Quality Assurance, Excellent Service, and Your Best Choice!

The MPJ Miniature Panel Jack requires less than half of the panel area required by the standard size version. A simple push-on clip is all that is required to retain the connector in a rectangular cutout, or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.

Mounting Dimensions

  • 8.1 x 16.7 mm (0.32 x 0.66″)
    Cutout Required
  • 14.3 mm (0.56″)
    Centers Horizontally
  • 23.8 mm (0.94″)
    Centers Row to Row Minimum.

Note: Minor discoloration of the connector may occur between 150°C (302°F) and 180°C (356°F). Electrical properties are not affected.

Specification

To Order
Alloy Code† Type of Thermocouple Used With Connector Compensating Alloy
Used in Connector		 Shell Color Model Number
(Female)
+ –
K CHROMEGA®-ALOMEGA® CHROMEGA® ALOMEGA® Yellow MPJ-K-F
T Copper-Constantan Copper Constantan Blue MPJ-T-F
J Iron-Constantan Iron Constantan Black MPJ-J-F
E CHROMEGA®-Constantan CHROMEGA® Constantan Purple MPJ-E-F
R/S Pt-Pt/13%Rh Copper RNX/SHX Green MPJ-R/S-F
G W-W/26%Re GPX GNX Red MPJ-G-F
C W/5%Re-W/26%Re CPX CNX Red MPJ-C-F
D W/3%Re-W/25%Re DPX DNX Red MPJ-D-F
U Uncompensated Copper Copper White MPJ-U-F
N OMEGALLOY® OMEGA-P® OMEGA-N® Orange MPJ-N-F

Download

Omega MPJ Series – Miniature Panel Jacks_DpstarGroup
