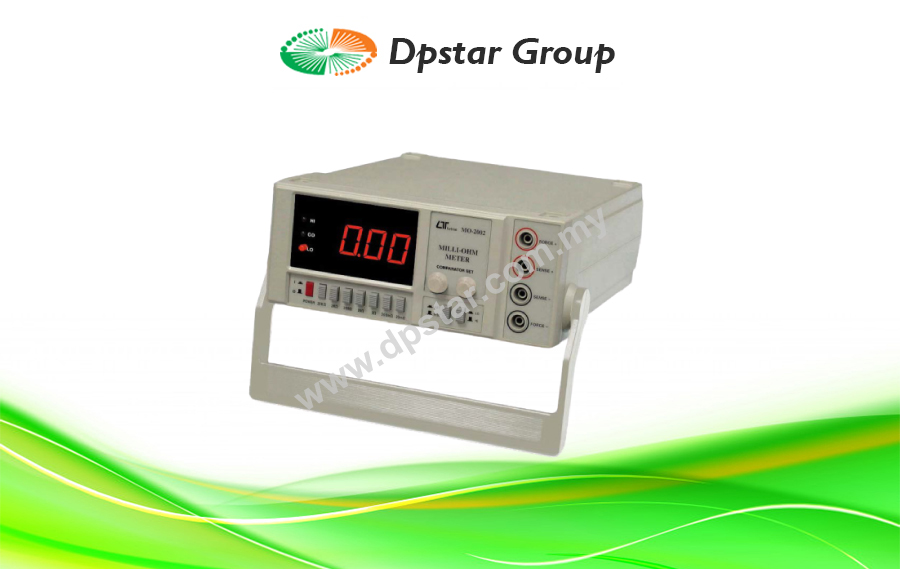

Milliohm Meters – Lutron MO-2002

Features

20 m /200 m /2 /20 /200 /2 K /20 K
HI / LO warning setup.
Large red LED display, 20.4 mm digit height.
4 terminal input, high accuracy.
4 wires with 2 Kelvin clips included.
Bench type, professional.
Power : AC 110V or AC 220 V/AC230 V.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Milliohm Meters

Milliohm Meter
Model : MO-2002 (AC 110V)
Model : MO-2002 (AC 220V/AC 230V)

20 m /200 m /2 /20 /200 /2 K /20 K
HI / LO warning setup.
Large red LED display, 20.4 mm digit height.
4 terminal input, high accuracy.
4 wires with 2 Kelvin clips included.
Bench type, professional.
Power : AC 110V or AC 220 V/AC230 V.

Specification

Test Range (Test Current)	• 20 m ohm ( 1 A DC ) • 200 m ohm ( 1 A DC ) • 2 ohm ( 100 mA DC ) • 20 ohm ( 10 mA DC ) • 200 ohm ( 1 mA DC ) • 2 K ohm ( 100 uA DC ) • 20 K ohm ( 10 uA DC )
Warning Setup	• Warning LED Indicator • Buzzer
Operating Temp.	0 to 50 ℃ ( 32 to 122 ℉ ).
Operating Humidity	Less than 80 % R.H..
Power Supply	• AC 110V ± 15%, 50/60 Hz • or AC 230V ± 15%, 50/60 Hz.
Fuse for Power Supply	• 200 mA/250 V
	• Size : 5 X 20 mm dia..
Dimension	• 280 x 210 x 90 mm • ( 11.0 x 8.3 x 3.5 inch)
Weight	Approx. 2.2 Kg ( 4.85 LB ).
Standard Accessories	• Power Cord………………………………………. 1 PC. • 4 wire with 2 Kelvin clips……………………. 1 pair. • Instruction Manual……………………………… 1 PC.
