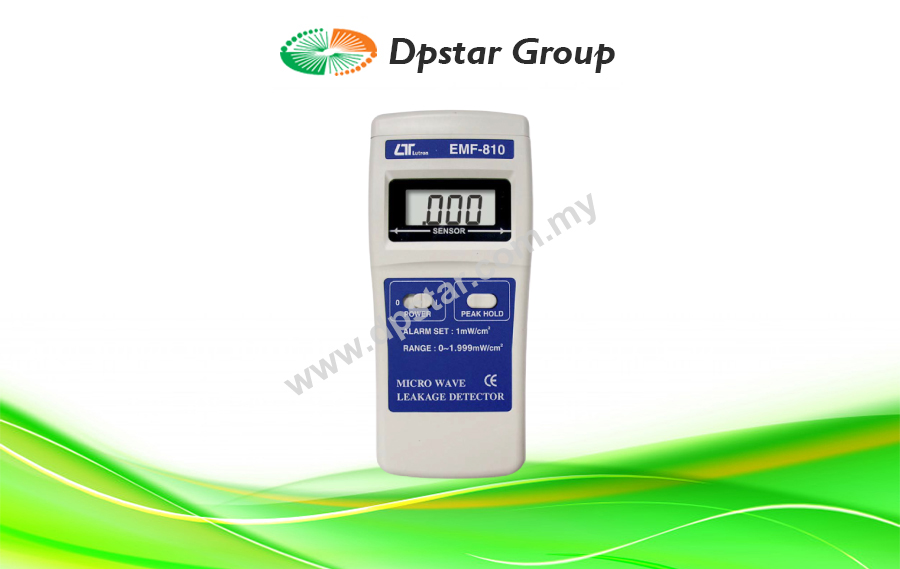

Micro Wave Leakage Detector – Lutron EMF-810

Features

Operating freq. range : 2.45 GHz 50 MHz.
Measurement range : 0 to 1.999 mW/cm.2
Peak hold, Alarm Setting.
Application for measuring the EMF value of micro-wave frequency precisely.
Useful equipment to detect the leakage of micro wave oven.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Micro Wave Leakage Detector

Micro Wave Leakage Detector
Model : EMF-810

Operating freq. range : 2.45 GHz 50 MHz.
Measurement range : 0 to 1.999 mW/cm.2
Peak hold, Alarm Setting.
Application for measuring the EMF value of micro-wave frequency precisely.
Useful equipment to detect the leakage of micro wave oven.

Specification

Display	• LCD size : 40 mm x 25 mm. • Digit size : 12 mm x 6 mm.
Measurement Unit	mW/cm^2
Operating Frequency Range	2.45 GHz ± 50 MHz * Beyond the 2.45 GHz ± 50 MHz, other frequency’s EMF value between 30 MHz to 3 GHz also can be measured, but for reference only.
Measurement Range	0 to 1.999 mW/cm^2
Accuracy	< Accuracy tested under 2.45 GHz ± 50 MHz and * measurement level is 0.1 mW/cm^2.
Peak Hold	To latch the max. measuring value.
Alarm Setting	If reading value > 1 mW/cm^2 approximately, the buzzer will sound.
Sensor Space Length	50 mm.
Over Indicator	Display shows ” OL “.
Power Current	Approx. DC 1.86 mA.
Weight	202 g/ 0.445 LB.
Dimension	• 152 x 69 x 36.3 mm. • (6.0 x 2.7 x 1.4 inch).
Standard Accessory	Operation Manual…………………………………….. 1 PC.
Optional Accessory	Soft carrying case, CA-52A.

Download

Lutron EMF-810 – Micro Wave Leakage Detector-DpstarGroup
