When arrived at the adjusted temperature and shut off the power, it doesn’t reset automatically and should be restarted artificially by pressing the reset button when needed as a one pole single switch device system. When lost the first adjustability of the other equipment, this product can be used as a safety device. You can set up the temperature in advance while manufacturing and you can choose the set-up temperature up to 350°C at most.

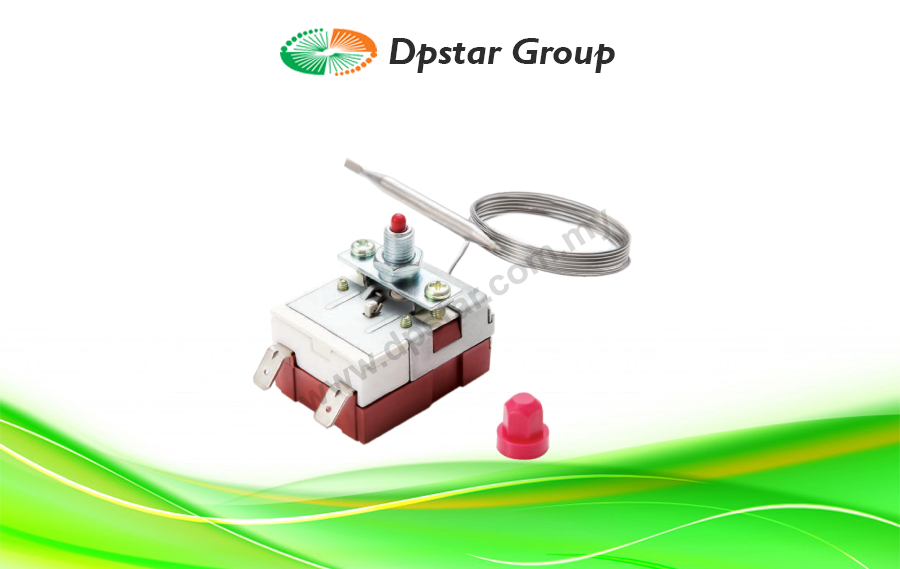

Manual Reset Thermostats – Rainbow TSR-320SF Series
Features
- Fast reaction time
- Protection Temperature limiter as panel-mounting thermostats
- SPST Only
- Factory pre-set fixed temperature up to 350°C
- Complies with ROHS
- Meets UL requirement
- Customized capillary up to 2000mm
- Electrical connections with 250 rec female quick-connect terminals
- Bulb and capillary are 300 series stainless steel
- The bulb has a variety of shapes and dimensions
Specification
Temperature Range | 50°C to 320°C |
Max Ambient Temp. For Body | 120°C |
Electric Rating | 16A/250VAC |
Switch Circuit | Single Pole Single Throw (SPST) |
Mountain Bracket | Screw and Nut |
Direction Of Terminal | 45°Angle |
Net Weight | 80g |
Capillary / Length | Stainless, Standard 1000mm (Optional 250mm ~ 2000mm) |
Stuffing Bolt | PT1/4″, M12, M14 (optional) |
