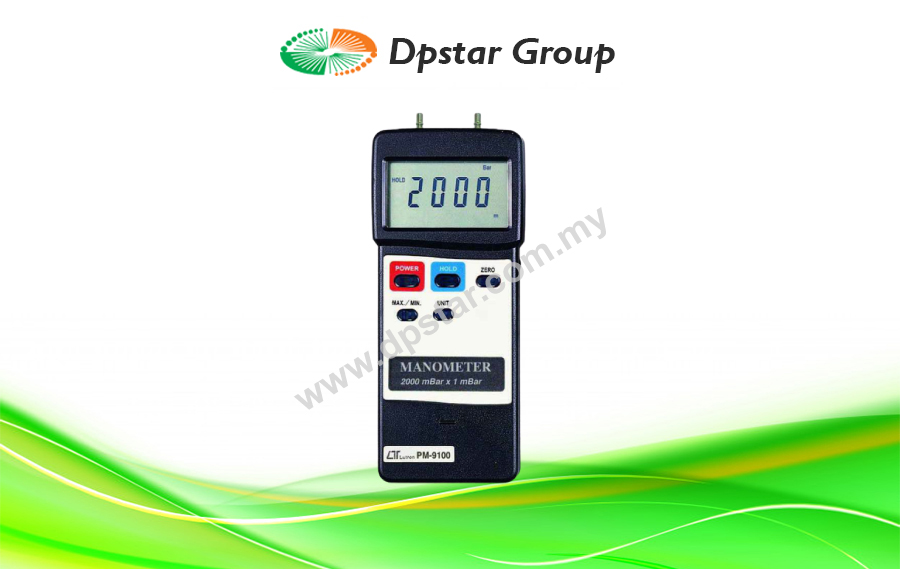

Manometer, 2000 Mbar, Differential Input – Lutron PM-9100

Dual & differential input, 2000 mbar x 1 mbar.
mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H20, meter/H2O, Atmosphere.
Data hold, Memory(Max.,Min.), RS232.
Application : Industrial, laboratory, schools,heating, ventilation, hospital, medical…
Size : 180 x 72 x 32 mm.

Enquiry

Dual & differential input, 2000 mbar x 1 mbar.
mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H20, meter/H2O, Atmosphere.
Data hold, Memory(Max.,Min.), RS232.
Application : Industrial, laboratory, schools,heating, ventilation, hospital, medical…
Size : 180 x 72 x 32 mm.

Specification

Circuit	Microprocessor LSI circuit.
Display	61 mm x 34 mm supper large LCD display. 15 mm ( 0.6″ ) digit size.
Display units	mbar, psi, Kg/cm^2, mm/Hg, inch/Hg, meter/H2O, inch/H2O, Atmosphere.
Function	Dual & differential input, data hold, zero/relative, memory. humidity Zero adjust Push button on the front
Zero adjust	Push button on the front panel.
Span adjust	Push button gain adjustment, usage for calibration precisely if necessary.
Sensor	· Sensor is built inside the housing. · Piezoelectric sensor. · Used for dry, non-corrosive and non-ionic air and gas only.
Data hold	By push button.
Data record	Record maximum & minimum readings.
Data output	RS 232 PC serial interface.
Power off	Auto shut off, saves battery life, or manual off by push button.
Sampling time	Approx. 0.8 second.
Operating temperature	0 to 50 ℃ ( 32 to 122 ℉ ).
Operating humidity	Less than 80% R.H.
Power supply	006P DC 9V battery(heavy duty).
Power current	Approx. DC 8.5 mA.
Weight	345 g/0.76 LB
Dimension	180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch )
Accessories included	· Instruction manual…………. 1 PC. · Hard carrying case………….. 1 PC.
Optional accessories	· Data acquisition software ( Windows version ), SW-U801-WIN · RS232 cable, UPCB-01 · USB cable, USB-01
