M12 Connector RTD Probes with Class A Accuracy 3-A Sanitary – Maltec-T MRS-H-M12 Series

Dpstar is a professional temperature sensor supplier in Malaysia. We provide a wide range of sanitary probes & solutions for process measuring & control for dairy, F&B & life sciences industries. They are perfect for easy handling, quick use temperature measurement. This wide array of sensors will keep your sanitary liquid processes clean and running smoothly.

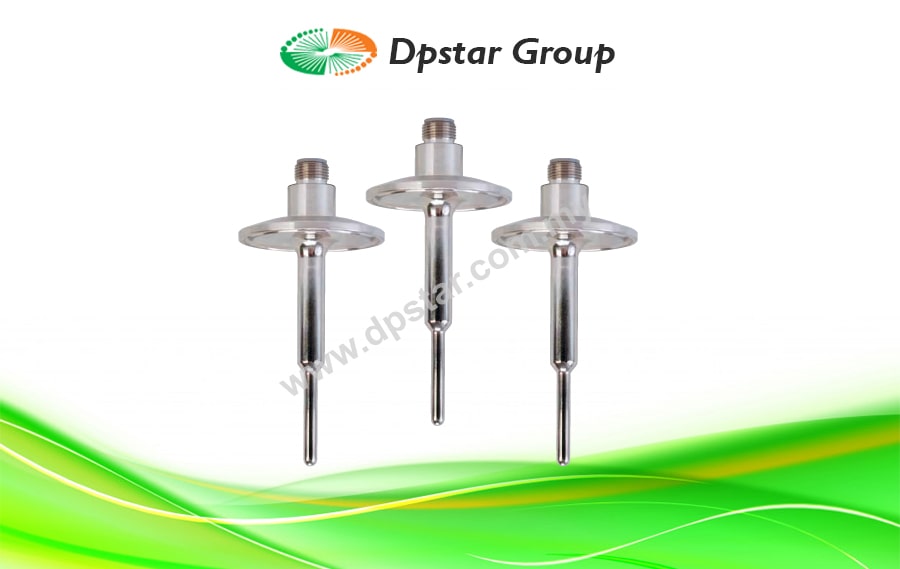

The 3-A Approved MRS-H-M12 Series RTD Sensors are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage, and BioPharmaceutical industries. These temperature sensors are manufactured with 316L stainless steel housings that meet the dimensional and finish requirements of 3-A Standard 74-05 and ASME BPE-2007 and are welded and processed to provide a clean, smooth, 32 microinch or better surface finish in the wetted areas for Clean-in-Place processes.

The MRS-H-M12 Series RTD probes are available in standard lengths from 3 to 6″, with a 4-wire Pt100 Class A element (100 ±0.06 Ω at 0°C) that is compatible with 3-wire RTD instrumentation. These heavy-duty probes have a 3⁄8″ diameter, which steps down to a 3⁄16″ diameter at the probe tip, for fast response and additional strength. Standard features include a 1½” 16 AMP Tri-Grip fitting and 4-wire M12 male connector termination.

A 4-Pin M12 Connector provides a quick and convenient connection point for process wiring. Omega offers a full line of M12 extension and patch cables in a variety of cable materials, lengths and connector configurations.

These sanitary RTD sensors are supplied standard as 4-wire assemblies with 4-pin connectors. When used in 3-wire applications, use pins A, B, and C as shown in the wiring detail below. When used in 2-wire systems, connect one wire to pins A or B and the second wire to pins C or D as shown below.

This M12 connector style sensor is also available with a Thermistor sensing element in order to accommodate a wide variety of input requirements. Please consult sales for available options, including element types and curves, probe lengths, and sanitary fitting styles.

How Thermocouple Probe Works?

Thermocouple probes operate on the principle that an electromagnetic force (emf) is generated when heat is applied to the junction of two dissimilar metals (sending junctions). At the other end of the wires, usually, as part of the input instrument, is another junction called the reference junction. The temperature is inferred based on the emf difference between the sensing and the reference junction, which is at a known temperature. Thermocouple probe junction types include exposed junction, ungrounded junction, and grounded junction.

Thermocouple Probe Junction Types

Sheaths with small diameters have faster response times; sheaths with larger diameters have longer life and are better for measuring higher temperatures.

Exposed Junction has the fastest response time, ideal for measuring rapid temperature changes. Clear coating on most models provides a humidity barrier for the thermocouple. Do not use with corrosive fluids or atmospheres.

Ungrounded Junction has a welded junction insulated from the protective sheath and is electrically isolated. Longer response time; use for conductive solutions or where isolation of the measuring circuitry is required.

Grounded Junction has a junction welded to tip of sheath. Wires are completely sealed from contaminants. Good response time.

Applications

• Food
• Dairy
• Beverage
• BioPharmaceutical
