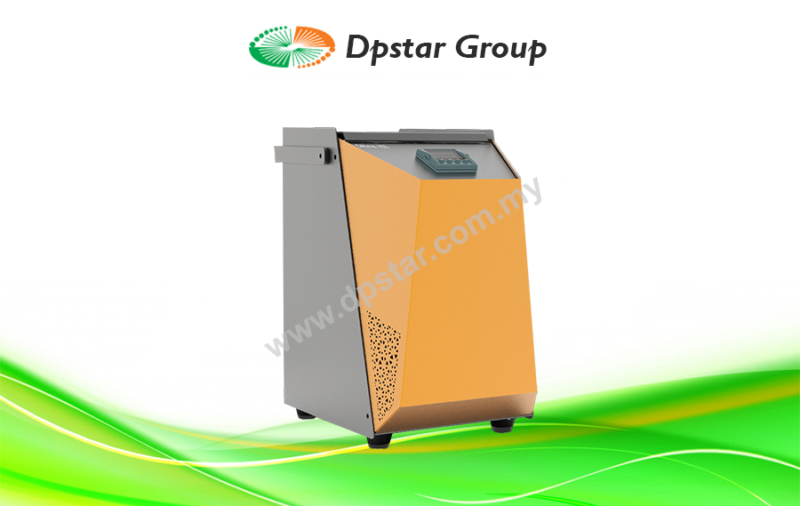

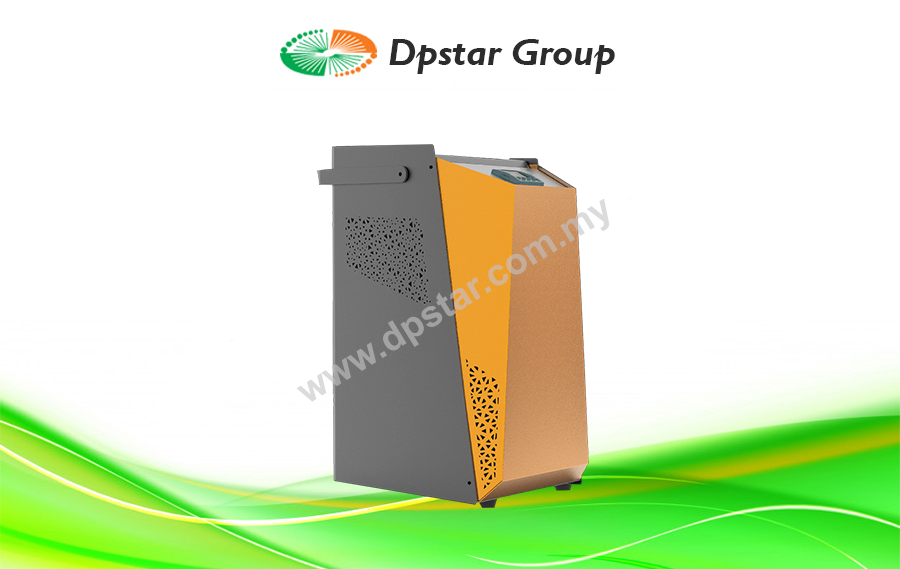

Low Temperature Dry Block Calibrator – Calsys 30/110

Dpstar Group is a Malaysia calibration equipment supplier specializing in temperature calibrators and process calibrators. Dpstar offers a complete range of temperature calibration types of equipment for calibration of Contact Type Sensors (Thermocouple, RTD). Our calibrators are Portable, Lightweight, Highly Stable Temperature calibrators for Industrial/ Laboratory Field Use. Dpstar’s Compact Temperature Calibrator is an extremely effective instrument that will live up to all your expectations. This is a fast, time-saving, and reliable true industrial temperature calibrator designed for On-Site use.

The calibrator controller uses a precision RTD as a controlling sensor and controls the good temperature with a thermoelectric cooler. To obtain and maintain a required temperature the controller varies the power to the heater via a solid-state relay. There is one electricity-driven fan which is situated under the heating chamber for cooling the heater. The dry-block calibrator was designed for portability, moderate cost, and ease of operation.

Calsys 30/110 dry block furnace is based on thermoelectric cooling circuitry. Calsys 30/110 provides a special design isothermal enclosure (Aluminium block) in which the thermocouple/RTD can be calibrated against the temperature of the calibrator.

Calsys -30/110 & CALsys -30/110 Autocal easy to use portable low-temperature calibrator with a temperature range from -30 to 110°C. It is a highly stable standard furnace for calibrating RTD. This calibrator can be used on-site for high-temperature calibration and also nd applications in aerospace, oil gas petrochemical, pharmaceutical industry, electric power, automotive, and material process industry. The comparison volume is a metallic fixed block of special material, which has a diameter of 32mm and 120mm long. Low-temperature dry block furnace based on thermoelectric cooling circuitry. This model provides a special design isothermal enclosure which can calibrate the sensor against the calibrator. The temperature of the calibrator is set and controlled by a self-tuned PID controller with automatic super adjustment. Our newly designed Calsys -30/110 model offers beer esthetic design and is performance-wise upgraded to the next level.

The CALsys -30/110 Autocal is an automatic temperature calibration system for the Thermocouple and RTD’s. The system consists of Temperature bath and PC software, which together contribute to the whole cycle of the auto calibration process. The system accepts 4 channels, 4 Thermocouples, or 4 RTDs. The connection for these channels through a special type of locking connector. The channel configuration can be done with an LCD display via a touch screen keypad. The thermocouple microvolt & RTD ohm reading for each channel is monitored with CJC compensation. After the calibration process is complete the PC software generates a report of actual calibrated values for the inputs. With the Tempsens make Compact Temperature Calibrator, you have chosen an extremely effective instrument which we hope will live up to all your expectations. This is a fast, time-saving, and reliable true industrial temperature calibrator designed for on-site use.
