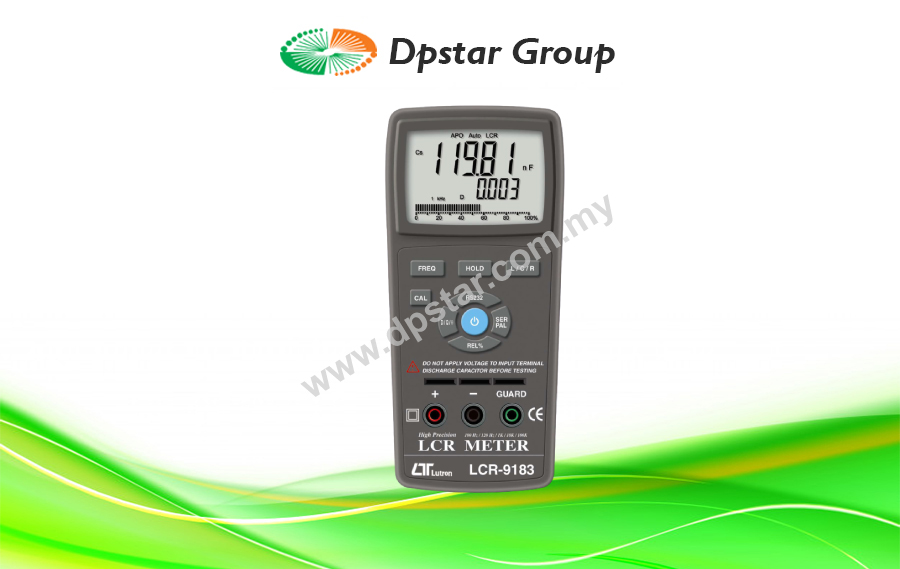

LCR Meters – Lutron LCR-9183

LCR Meter
100 Hz/120 Hz/1 KHz/10 KHz/100 KHz LCR Meter, Professional
Model : LCR-9183

• Auto LCR smart check and measurement.
• 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz
• Test ranges : (ex : F = 1 KHz)
  L : 200.00 uH to 2000.0 H
  C : 2000.0 pF to 2.000 mF
  R : 20.000 to 200.0 M
• Series/Parallel modes are selectable.
• DCR mode 200.00 to 200.0M
• Ls/Lp/Cs/Cp with D / Q / / ESR Parameter.
• RS232/USB computer interface.
• Optional data acquisition software, SW-E803.
• Optional SMD test clips, SMDC-21.
• Optional SMD tester, SMDA-22.
• Function is same as the LCR-9184, but without LCD backlight structure, without sorting function and the spec. accuracy is larger than LCR-9184.
