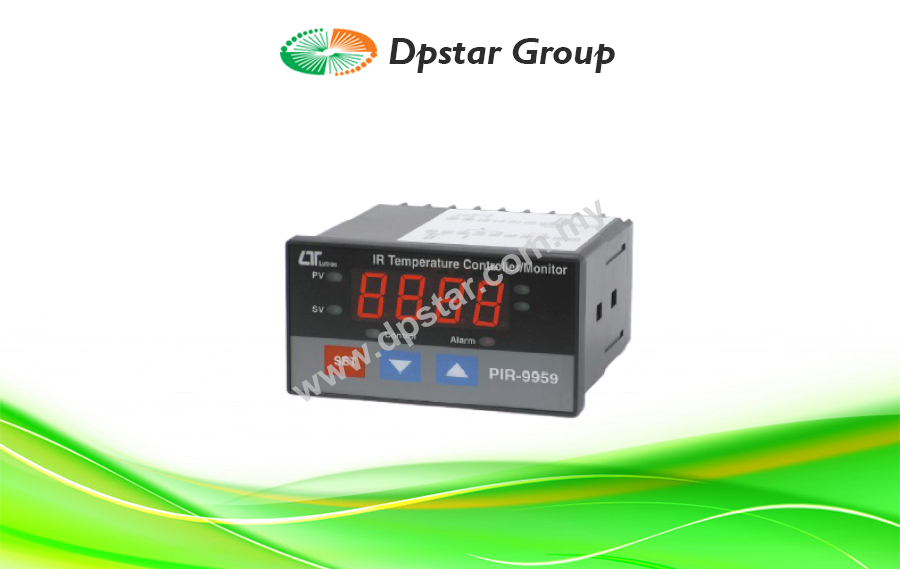

IR Temperature Controller/Monitor – Lutron PIR-9959A

Input signal : 4 to 20 mA, 2 wires.
Input sensor : Infrared Temp. transmitter, TR-IR420.
Measurement : 0 to 300 oC, oC/oF.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Power : 90 ACV to 260 ACV, 50/60 Hz.
Use the 4-20 mA input, IR temp. sensor can be installed in the faraway position.
RS-232/USB computer interface.
DIN size : 96 x 48 mm. Depth : 107 mm.
IR Temp. Transmitter, TR-IR420 is the optional accessory.
Optional USB cable, USB-01.
Optional data acquisition software,SW-U801-WIN.
Optional Excel data acquisition software, SW-E802.

Enquiry

Input signal : 4 to 20 mA, 2 wires.
Input sensor : Infrared Temp. transmitter, TR-IR420.
Measurement : 0 to 300 oC, oC/oF.
Control setting, Hi/Lo alarm setting.
Control relay output, alarm relay output.
Power : 90 ACV to 260 ACV, 50/60 Hz.
Use the 4-20 mA input, IR temp. sensor can be installed in the faraway position.
RS-232/USB computer interface.
DIN size : 96 x 48 mm. Depth : 107 mm.
IR Temp. Transmitter, TR-IR420 is the optional accessory.
Optional USB cable, USB-01.
Optional data acquisition software,SW-U801-WIN.
Optional Excel data acquisition software, SW-E802.
