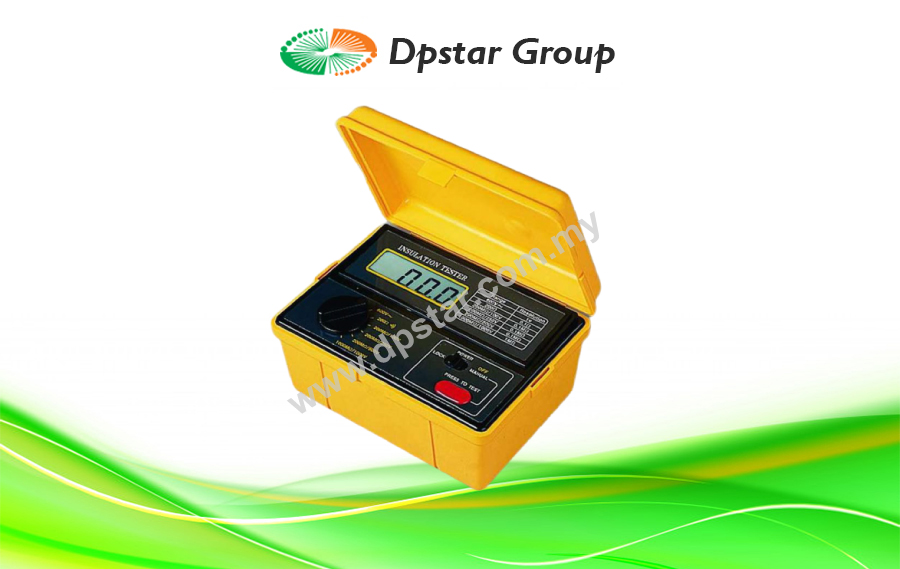

Insulation Testers – Lutron DI-6300

Features

200 M ohm (100V), 200 M ohm (250V), 200 M ohm (500V), 1000 M ohm(1000V), ACV, 200 ohms, continuity beeper.
Short circuit, 2.8 mA high driving current.
Size : 160 x 120 x 85 mm

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Insulation Testers

Insulation Tester
Model : DI-6300

200 M ohm (100V), 200 M ohm (250V), 200 M ohm (500V), 1000 M ohm(1000V), ACV, 200 ohms, continuity beeper.
Short circuit, 2.8 mA high driving current.
Size : 160 x 120 x 85 mm

Specification

Display	18mm (0.7″) LCD (Liquid Crystal Display), Max indication 1999.
Measurement	• Insulation : 200 Megohm/ 100V, 200 Megohm/250V, 200 Megohm/500V,1000 Megohm/1000V.• ACV : 600 ACV • OHMS : 200 ohm
Sampling Time	0.4 second.
Megohm Respond Time	Max. approx. 2.5 second.
Zero Adjustment	Automatic adjustment.
Over-input	Indication of ” 1 ” .
Operating Temp.	0to 50°C (0to 122°F )
Operating Humidity	Less than 80% R.H.
Power Supply	DC 9V (6 x 1.5V AA battery, recommended to use the alkaline or heavy duty battery).
Power Consumption	• Approx. 100 mA (1000 Megohm /1000V range). • Approx. 28 mA (200 Megohm/500V range). • Approx. 28 mA (200 Megohm/250V range). • Approx. 13 mA (200 Megohm/100V range). • Approx. 10 mA (200 ohm/OHMS range). • Approx. 1.6 mA (600 ACV/ACV range).
Dimension	160 x 120 x 85 mm (6.3 x 4.7 x 3.3 inch), with housing front cover.
Weight	575 g ( 1.3 lb ).
Standard Accessories	• Instruction Manual ……………………………………………………1 PC. • Alli gator Clips, AL-03S……………………………………………..1 pair
