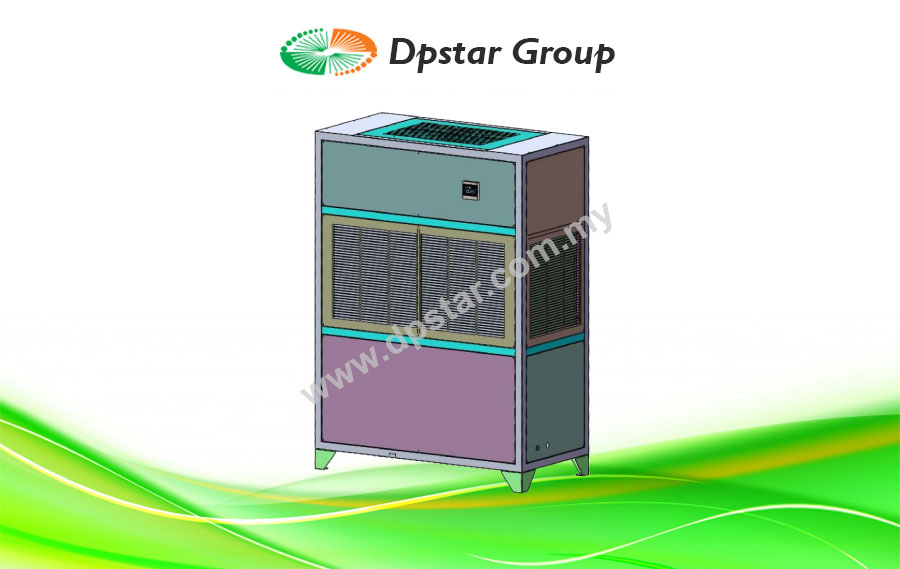

Industrial Floor Standing Dehumidifier – ecostar ECOFD-A35H Series

Features

  • Low maintenance cost and Energy Efficient Design.
  • Reliable and High-Performance Scroll Compressor with environmental friendly refrigerant R410A.
  • Energy Saving, High Efficiency EC Backward Curved or AC Centrifugal Fan for Low Noise, High Static Pressure operation with Variable Speed Controller.
  •  Aluminum Mesh Filter for heavy duty usage and washable.
  • The machine built for long hour operation 24/7.
  • Advance touch button controller with built-in temperature and humidity sensor. User friendly operation. Easy to set up and settings will be stored in memory.
  • Honeycomb Structure Evaporator with
  • Hydrophilic Water-Repellent Blue Coating.
  • Water Drain Pan is made of SUS304 stainless steel to prevent corrosion damage.
Enquiry
Category:
Love0

Dpstar is a leading supplier of Industrial Dehumidifiers in Malaysia. We set the standard with regards to energy-efficient, hygienic solutions that incorporate innovative features to deliver high performance and minimise maintenance. We offer dehumidifier system advice, supply, installation, commissioning, and maintenance support.

ECOFD-A35H Series dehumidifying capacity is 840 liter / day @ 30°C, 80%RH. New 3-Ways Air Inlet for better efficiency with bigger dehumidifying surface. The body material is made of cold-rolled sheet metal with epoxy powder coating paint Evaporator and Condenser is coated for better durability and corrosion-resistant. It is also washable for maintenance service.

Large Industrial Dehumidifier

ecostar’s Dehumidifier is built-in with the latest AC or EC centrifugal fan technology to meet the demand for high-performance and energy efficient product. Our Centrifugal Fans are precision balanced to provide superior performance. The reduced power consumption of the high efficiency motor directly translates to savings, a new standard for energy savings and performance have been achieved. Our centrifugal fans are ideally suited for many air-moving applications, dehumidifiers and air conditioner.

Specification

Model ECOFD-A35H
Type Industrial Dehumidifier with 3 ways air inlet
Dehumidifying Capacity @ 30°C, 80%RH 840L / day
Air Flow Rate 8500 m³/h with Variable Speed
Rated Power in Operation 13.8 kW
Rated Current in Operation 21 A
Voltage 415V / 3PH / 50Hz
Motor AC type or EC – Electronically Commutated
Impeller Vane Aluminum Backward Curved Centrifugal or Forward Curved Centrifugal
Fan Speed Single Speed / Variable Speed Control
Static Pressure 200Pa
Controller Digital Controller with Honeywell Temperature and Humidity Sensor
Controller Accuracy with ecostar’s propriety programmed logic ± 2%RH
Operating temperature 5 – 38°C
Machine Structure 1.2mm SPCC cold rolled metal body with thick frame
Coating Industrial Grade Powder Coated
Dust Filter Durable Aluminium Mesh Filter
Drain Pan SUS304 Stainless Steel with Powder Coated for extra protection
Condenser and Evaporator Honeycomb Aluminum Fins with Hydrophilic coating
Defrost Patented automatic defrosting system – able to operate at 5°C of low temperature
Electronic Expansion Valve Equipped with precision control of refrigerant flow with Electronic Expansion Valve
Pressure Switch Equipped with low pressure switch for protection on compressor
IP Rating IP54
Electrical Shock Protection Rating IPXI
Protection Delayed startup protection
Refrigerant R410A / R22
Weight 250kg
Drain Outlet Dimension DN25
Dimension 1200(W) x 616(D) x 1670(H) mm

Download

ecostar ECOFD-A35H Series Industrial Floor Standing Dehumidifier-DpstarGroup
