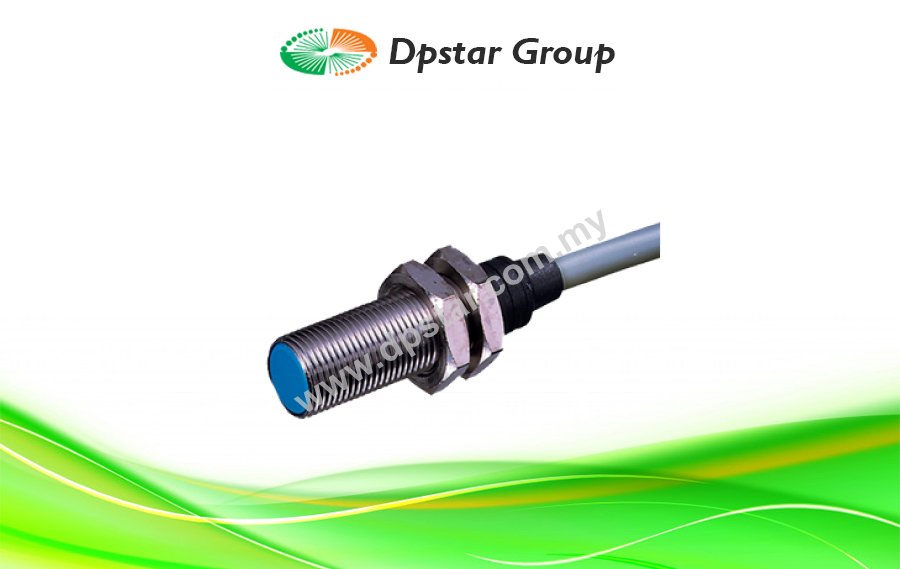

Inductive Proximity Sensor – PR Electronics 8342

Application

• Detector for registration of rotation, positioning etc. in connection with frequency converters, pulse calculators, etc.

Technical characteristics

• Supply voltage: 8.2 VDC / 1 kΩ
• Switching distance: 2 mm
• Cable length: 2 m
• Material: Stainless steel
• Protection degree: IP67
• Ambient temperature: -30…+70°C
• Max. frequency: 800 Hz
• Dimensions (Ø x L): M12 x 30 mm
• Weight: 70 g
• Color code: Brown: +V, Black: +input
