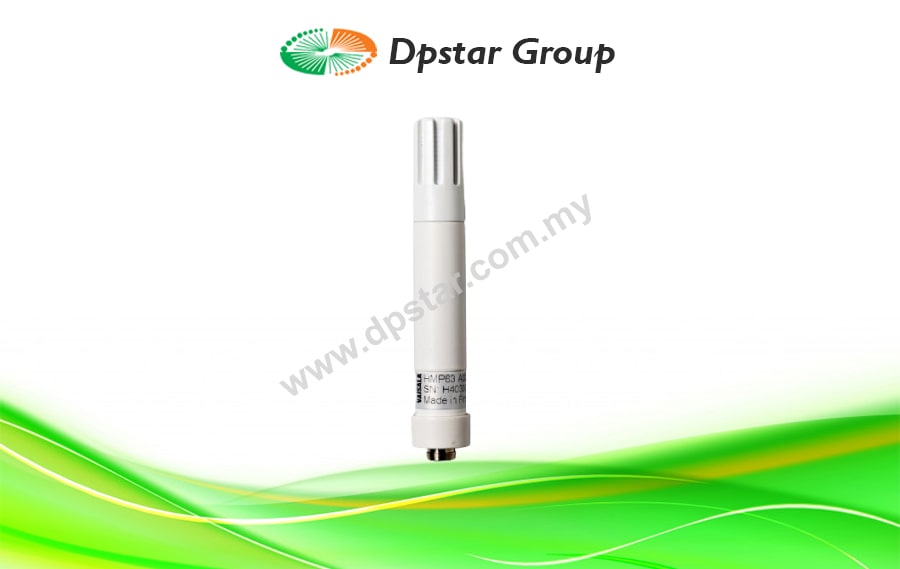

Vaisala HMP63 Humidity & Temperature Probe

Features

  • Fast thermal response time
  • Low power consumption
  • Start-up time < 2 s
  • Measurement range: 0 … 100 %RH; −40 … +60 °C (−40 … +140 °F)
  • Detachable cable with standard 4-pin M8 connector
  • Plastic enclosure with IP54 classification
  • Interchangeable INTERCAP sensor
  • Optional RS-485 digital output supports Modbus RTU
  • Optional dew point, wet bulb temperature, absolute humidity, mixing ratio, and enthalpy output
Enquiry
Category:
Love0

Dpstar is a leader in environmental and industrial measurements. Curiosity and innovation are core values in our company. Our extensive knowledge and expertise are materialized in our selection of innovative products. Accurate measurements are essential for healthy indoor air and improving the energy efficiency of buildings. The unique, cutting-edge Dpstar sensor technologies are manifested throughout our versatile range of products. The transmitters have an exceptionally long lifetime and excellent measurement stability, thus being practically maintenance-free. These are among the many reasons why Dpstar’s products are a sustainable choice.

The INTERCAP Humidity and Temperature Probe HMP63 is a cost-effective humidity probe with a plastic enclosure. It is designed for non-condensing indoor environments or integration into other manufacturers’ equipment. The probe fits into tight spaces. It is ideal for conditions with fast temperature changes and when standard measurement accuracy is sufficient.

Dimension

Benefits

  • Easy Installation
    The probe fits into tight spaces. The cable has a threaded M8 connector for easy installation. Different cable lengths are available and other compatible M8-series cables can also be used. Accessories are available for different installation needs.
  • Low Power Consumption
    HMP63 is suitable for battery-powered applications thanks to its very low power consumption and fast start-up time.
  • Several outputs
    Temperature measurement is a standard feature in HMP113, with dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, and enthalpy as optional calculated parameters. Four voltage output ranges are available. An alternative RS-485 output with Modbus support is also available.
  • Fast Thermal Response Time
    HMP63 has a PC/ABS plastic enclosure. It is ideal for environments with fast temperature changes where standard measurement accuracy is sufficient.
  • No Recalibration Required
    HMP63 includes an interchangeable INTERCAP sensor. No recalibration is required – the humidity sensor can simply be replaced, even in the field.

Specification

Relative humidity
Measurement range 0 … 100 %RH
Typical accuracy at 0 … +40 °C (+32 … +140 °F) ±3 %RH (0 … 90 %RH)
±5 %RH (90 … 100 %RH)
at −40 … 0 °C and +40 … +60 °C
(−40 … +32 °F and +104 … +140 °F)		 ±5 %RH (0 … 90 %RH)
±7 %RH (90 … 100 %RH)
Humidity sensor Vaisala INTERCAP
Temperature
Measurement range −40 … +60 °C (−40 … +140 °F)
Accuracy at +10 … +30 °C (+50 … +86 °F)
at −40 … +10 and +30 … +60 °C
(−40 … +50 and +86 … +140 °F)		 ±0.5 °C (±32.9 °F)
±0.6 °C (±33.08 °F)
Analog outputs
Accuracy at 20 °C (+68 °F) ±0.2 % of FS
Temperature dependence ±0.01 % of FS/°C (±0.006 % of FS/°F)
Inputs and outputs
Power consumption 1 mA average, max. peak 5 mA
Operating voltage(1) With 1 V / 2.5 V output 5 … 28 VDC
With 5 V output 8 … 28 VDC
With loop power converter 8 … 28 VDC
With digital output 5 … 28 VDC
Start-up time Probes with analog output 4 s at operating voltage
13.5 … 16.5 VDC
2 s at other valid operating voltages
Probes with digital output 1 s
Outputs 2 channels 0 … 1 VDC / 0 … 2.5 VDC / 0 … 5 VDC /1 … 5 VDC
1-channel loop-power converter (separate module, compatible with humidity accuracy only) 4 … 20 mA
Digital output (optional) RS-485 2-wire half duplex, supports Modbus RTU
External loads 0 … 1 V RL min. 10 kΩ
0 … 2.5 V /0 … 5 V RL min. 50 kΩ
Output parameters Relative humidity, temperature, dew point temperature, wet bulb temperature, absolute humidity, mixing ratio, enthalpy
(1) Use lowest available operating voltage to minimize heating.
Operating environment
Operating temperature −40 … +60 °C (−40 … +140 °F)
EMC compliance EN 61326-1, basic immunity test requirements
Mechanical
IP rating IP54 (1)
Cable connector 4-pin M8 (IEC 60947-5-2)
Materials Body PC/ABS blend
Grid filter PC (glass reinforced)
Cable Polyurethane or FEP
Weight Probe 9 g (0.3 oz)
Probe with 0.3 m (1 ft) cable 20 g (0.7 oz)
(1) Not applicable with the plastic grid filter.
Spare parts and accessories
Sensors Vaisala INTERCAP sensor, 1 pc 15778HM
Vaisala INTERCAP sensor, 10 pcs INTERCAPSET-10PCS
Sensor protection Plastic grid filter DRW240185SP
Plastic grid with membrane filter ASM210856SP
Stainless steel sintered filter HM47280SP
Porous PTFE filter 219452SP
Probe installation Probe mounting clamp set, 10 pcs 226067
Probe mounting flange 226061
Probe holder, 5 pcs ASM213382SP
Plastic locking bushing (3 pcs) for attaching probe to HM40 DRW238590SP
Connection adapters 4 … 20 mA loop power converter UI-CONVERTER-1CB
Mounting bracket for converter 225979
USB cable for PC connection 219690
Connection cable for HM70 219980SP
Connection cables with open wires +60 °C 0.3 m (+140 °F 1 ft) HMP50Z032SP
+60 °C 1.2 m (+140 °F 4 ft) HMP50Z120
+60 °C 3 m (+140 °F 9.8 ft) HMP50Z300SP
+80 °C 1.5 m (+176 °F 5 ft) 225777SP
+80 °C 3 m (+176 °F 10 ft) 225229SP
+180 °C 1.5 m (+356 °F 5 ft) FEP 238025
+180 °C 3 m (+356 °F 10 ft) FEP 226902SP
