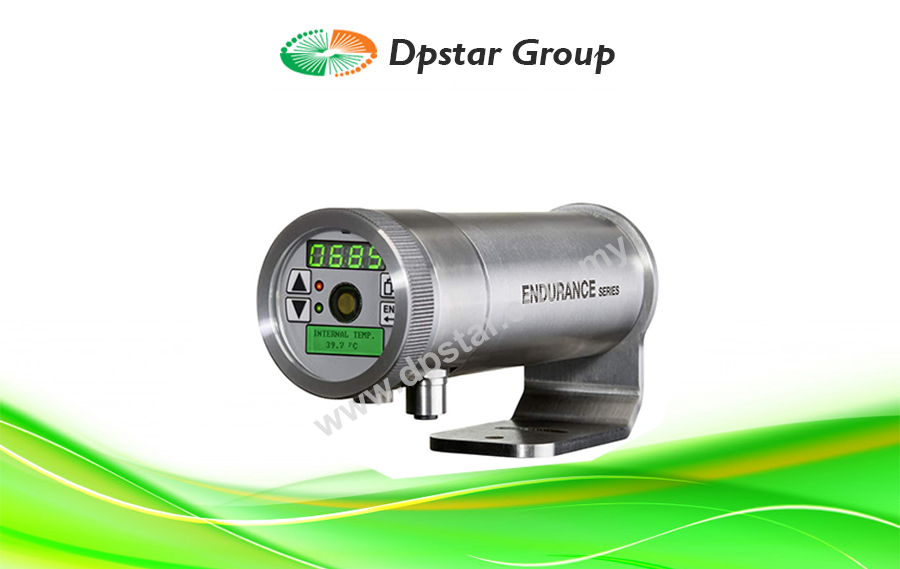

High Temperature Infrared Pyrometers – Raytek Endurance Series

The Fluke Process Instruments Endurance series has been designed to meet the requirements of modern industry that allows you to integrate with all major control systems quickly, easily and seamlessly. The series are available in single color, two color and fiber optic Endurance models. The innovative Endurance Series of low-temperature and high-temperature two color pyrometers meets all requirements of modern industry: it is flexible and easy-to-install; durable to withstand the most demanding harsh industrial environments; visual – allowing you to see and understand your process temperature data. The innovative optional camera feature for the integrated sensors allows you to continuously monitor your process visually, while the LED sighting option allows you to see the spot size on the target and make sure you have a clean line of sight to the target. The match function takes the guesswork out of setting the emissivity.

Endurance fiber-optic pyrometers allow measurement of targets that would otherwise be inaccessible because of space constraints or harsh environments. Separated by a flexible fiber-optic cable, the optical head may be positioned near the target with the rugged electronics housing installed remotely in a convenient location. Fiber-optic sensors are completely non-conductive and offer improved immunity to RFI and EMI interference. Endurance companion software allows you to archive your process temperatures for data analysis and sensor setup. Endurance meets the requirements of Digital Industry. It is designed to measure product temperature in the harshest of environments and communicate the results back to control system or monitoring stations. This stainless steel housed pyrometer can be specified with the widest range of communication interfaces from rugged analogue isolated input/output through to fast LAN/Ethernet and RS485. The Endurance Series is supported by the best-in-class 4 year warranty.

The SpotScan protective enclosure features:

• Durable housing IP65 enclosure designed to survive in ambient temperatures up to 60°C (140ºF)
• Air purge option available for use in dusty or dirty environments
• Sighting achieved with the on board sensor via laser, through-the-lens sighting, LED or video function

The ThermoJacket protective enclosure features:

• Rugged cast aluminum housing withstands ambient temperatures up to 315ºC (599ºF).
• Thermal and mechanical environmental protection
• Air/water cooling and air purge in one unit
