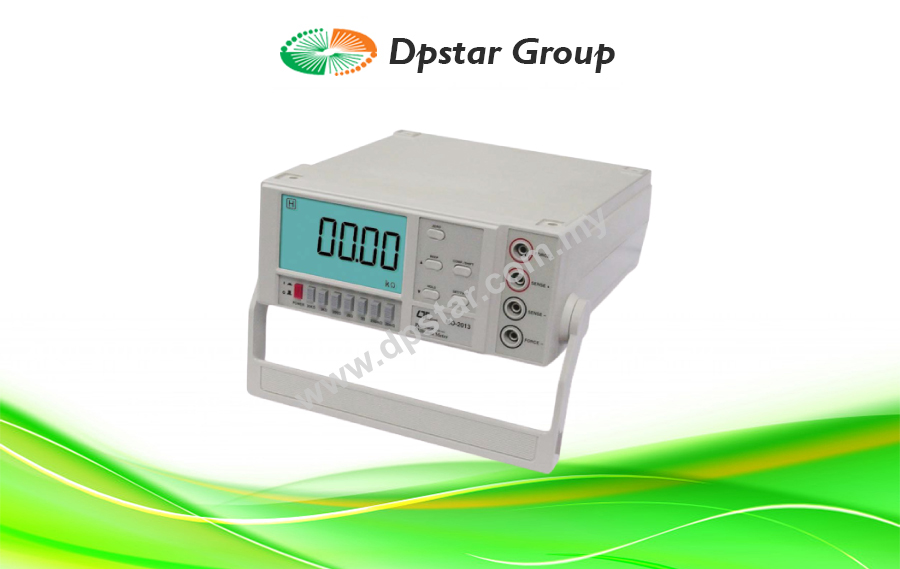

High Precision Milliohm Meter – Lutron MO-2013

Features

Professional bench type milliohm meter.
20 m /200 m /2 /20 /200 /2 K /20 K ohm.
20,000 counts, Jumbo LCD with back light.
Hi / Lo warning, 4 wires terminals, Kelvin clips is included, 0.001 milliohm resolution.
Judgement output : Low/Good/High port, used for the automatic machine to select the components (good or no good).
Power : AC 110V or AC 220 V/AC230 V.

Categories: Test Instruments, Lutron ~ Test Instruments, Thiết bị test, Milliohm Meters

High Precision Milliohm Meter
Model : MO-2013

Professional bench type milliohm meter.
20 m /200 m /2 /20 /200 /2 K /20 K ohm.
20,000 counts, Jumbo LCD with back light.
Hi / Lo warning, 4 wires terminals, Kelvin clips is included, 0.001 milliohm resolution.
Judgement output : Low/Good/High port, used for the automatic machine to select the components (good or no good).
Power : AC 110V or AC 220 V/AC230 V.

Specification

Test Range (Test Current)	• 20 m ohm ( 1 A DC ) • 200 m ohm ( 1 A DC ) • 2 ohm ( 100 mA DC ) • 20 ohm ( 10 mA DC ) • 200 ohm ( 1 mA DC ) • 2 K ohm ( 100 uA DC ) • 20 K ohm ( 10 uA DC )
Warning Setup	• Warning LCD Indicator • Buzzer
Operating Temp.	0 to 50 ℃ ( 32 to 122 ℉ ).
Operating Humidity	Less than 80 %RH.
Power Supply	• AC 110V +/- 15%, 50/60 Hz • or AC 230V +/- 15%, 50/60 Hz.
Power Consumption	• AC 110V : Approx. 33 mA • AC 230V : Approx. 15 mA
Fuse for Power Supply	• 500 mA / 250 V • Size : 5 X 20 mm dia..
Data Output	RS 232/USB PC serial interface. • Connect the optional RS232 cable UPCB-02 will get the RS232 plug. • Connect the optional USB cable USB-01 will get the USB plug.
Dimension	• 280 x 210 x 90 mm • ( 11.0 x 8.3 x 3.5 inch)
Weight	Approx. 2.04 Kg ( 4.49 LB ).
Standard Accessories	• Power Cord…………………………..1 PC. • 4 wire with 2 Kelvin clips………..1 pair. • Instruction Manual…………………..1 PC.
Optional Accessories	• RS232 cable, UPCB-02 • USB cable, USB-01 • Data Acquisition software, SW-U801-WIN
